Pyrometer with LED display CellaPort PT 130
USBportableindustrial

pyrometer with LED display
pyrometer with LED display
pyrometer with LED display
pyrometer with LED display
pyrometer with LED display
pyrometer with LED display
Add to favorites
Compare this product


Characteristics

Display
with LED display
Communication
USB
Configuration
portable
Applications
industrial, for harsh environments, for quality control, for the glass industry
Other characteristics
non-contact
Temperature

Max.: 2,500 °C
(4,532 °F)

Min.: 500 °C
(932 °F)

Description

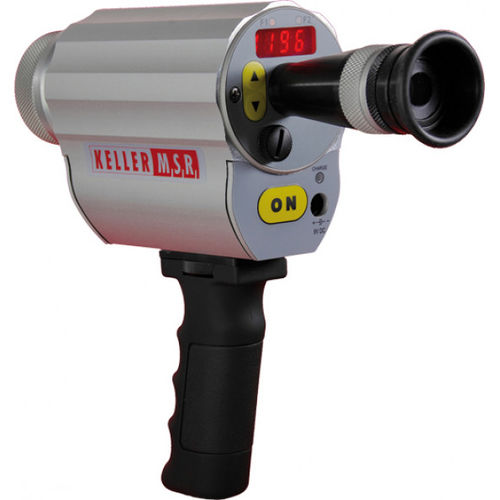

The CellaPort PT 130 is a digital pyrometer for non-contact measurement of temperatures ranging from 500 to 2500 °C. The sensor detects infrared radiation at a short wavelength which yields extremely accurate temperature readings for metals. The target can be focused by through-the-lens sighting. The pyrometer features a rear panel display and keypad. Parameters such as emissivity, measuring range or smoothing constant can be adjusted directly at the instrument. The LED display will show parameter adjustments made using the keypad. In the normal operating mode the display indicates the current temperature reading. Features: - Range: 500 to 2500 °C - Focusable, interchangeable optics allow for precise distance adjustment - Precision lenses with broadband antireflection coating - LED display is easy to read from a distance - No mechanical moving parts, thus wear-free - USB interface
