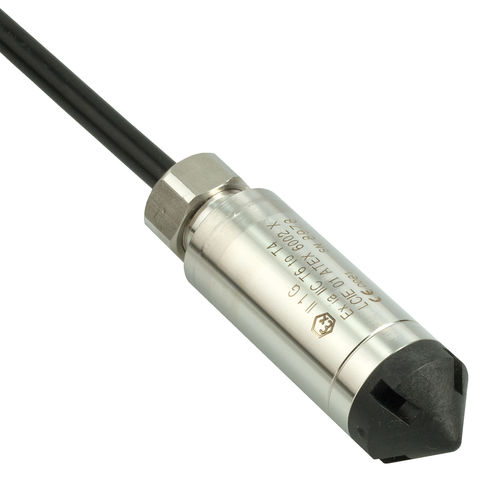

Piezoresistive level probe 26Y-Ei
for waterfor fuel2-wire

Piezoresistive level probe - 26Y-Ei - KELLER Pressure AG - for water / for fuel / 2-wire
Piezoresistive level probe - 26Y-Ei - KELLER Pressure AG - for water / for fuel / 2-wire
Piezoresistive level probe - 26Y-Ei - KELLER Pressure AG - for water / for fuel / 2-wire - image - 2
Piezoresistive level probe - 26Y-Ei - KELLER Pressure AG - for water / for fuel / 2-wire - image - 3
Add to favorites
Compare this product
Go to the KELLER Pressure AG website for more information

Characteristics

Technology
piezoresistive
Medium
for water, for fuel
Interface
4-20 mA, 2-wire
Applications
fuel tank
Other characteristics
stainless steel, intrinsically safe, IP68
Process pressure

Max.: 10 bar
(145.04 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 85 °C
(185 °F)

Min.: -20 °C
(-4 °F)

Description

The level sensors of the 26Y-Ei series are budget-friendly, but still offer high accuracy and excellent long-term stability. They are available in versions for absolute or relative pressure. With a start-up time of just 5 ms, the Y line is ideally suited to data logger applications. Intrinsically safe – suitable for use in explosive atmospheres.
