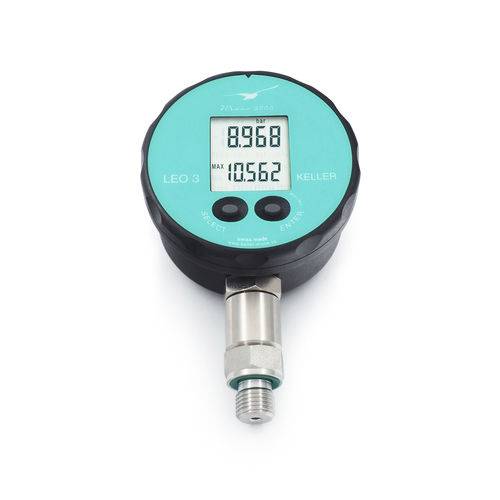

Pressure gauge with LCD display LEO3
threadedG 1/4NPT 1/4

Pressure gauge with LCD display - LEO3 - KELLER Pressure AG - threaded / G 1/4 / NPT 1/4
Pressure gauge with LCD display - LEO3 - KELLER Pressure AG - threaded / G 1/4 / NPT 1/4
Pressure gauge with LCD display - LEO3 - KELLER Pressure AG - threaded / G 1/4 / NPT 1/4 - image - 2
Pressure gauge with LCD display - LEO3 - KELLER Pressure AG - threaded / G 1/4 / NPT 1/4 - image - 3
Pressure gauge with LCD display - LEO3 - KELLER Pressure AG - threaded / G 1/4 / NPT 1/4 - image - 4
Add to favorites
Compare this product
Go to the KELLER Pressure AG website for more information

Characteristics

Display
with LCD display
Mounting
threaded
Process connection
NPT 1/4, G 1/4
Material
stainless steel
Technology
electronic
Communication
RS485
Protection level
IP65
Applications
process
Pressure

Max.: 1,000 bar
(14,503.77 psi)

Min.: 0 bar
(0 psi)

Precision

0.1 %

Process temperature

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Description

The LEO3 digital manometers also output the pressure values as an analog signal for display purposes and have an RS485 interface for integration in bus systems and communication with computers. The current 4...20 mA measured value is shown on the display at the same time as the pressure value. The minimum or maximum value since the last reset can also be displayed at the touch of a button. Power is supplied directly via the 4...20 mA circuit.
