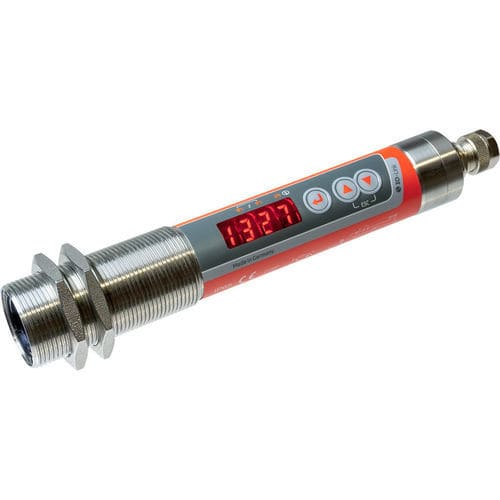

Pyrometer with LED display CellaTemp® PK 11

°CIO-Linkscrew-in

Product overview:
The CellaTemp PK 11 is a fast, non-contact pyrometer for wear-free temperature measurement from a safe distance in the range 0–1000 °C. It integrates a vitality indicator (SMART) for continuous self-monitoring and supports preventive maintenance.

Key features:

• Measuring range 0–1000 °C
• Analog output 0(4)–20 mA, switchable and scalable
• 2 × PNP open collector switching outputs
• IO-Link V1.1.3 interface
• High optical resolution with precision lenses (8–14 µm)
• M30 central thread for simple mounting
• Stainless steel housing, protection class IP65
• Large 4-digit red LED display

Measurement parameters:
Sensor: Thermopile
Spectral range: 8–14 µm
Response time (t90): ≤ 60 ms
Accuracy: 0.75 % of reading + 2.0 K
Repeatability: 1 K
Display resolution: 0.1 K (< 200 °C) / 1 K (≥ 200 °C)

Electrical parameters:
Power supply: 18–32 V DC
Current consumption: ≤ 50 mA at 24 V DC
Analog output: 0(4)–20 mA linear
Switching outputs: 2 × PNP open collector, 24 V DC, 150 mA max
Interface: IO-Link V1.1.3

Adjustable and diagnostic functions:

• Emissivity, analogue scaling and span
• Damping, hold time, max-value memory
• Temperature correction via interpolation points
• Vitality indicator, service and diagnostic functions
• Reverse polarity protection and simulation mode

Scope of delivery:
Pyrometer CellaTemp PK 11; short manual; 2 fixing nuts; IO-Link software SW 50 available.
