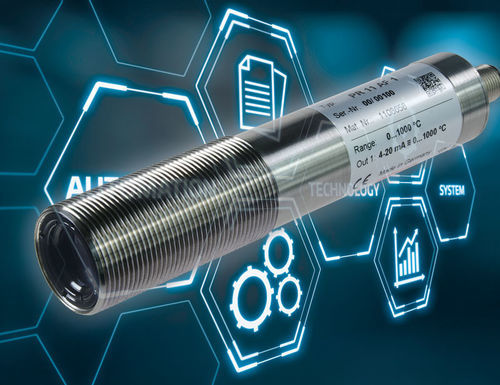

Pyrometer without display CellaTemp® PR 11

°CIO-Linkanalog output

Product description:
The CellaTemp® PR 11 is a smart infrared thermometer for fast, non-contact and wear-free temperature measurement from a safe distance in the temperature range between 0 and 1,000 °C.

Special features:

• Compact infrared pyrometer with stainless steel housing
• Standardised, fieldbus-independent IO-Link interface
• Analogue output 0/4 - 20 mA (linear, switchable, scalable)
• Large measuring ranges with high temperature resolution
• High optical resolution and measurement accuracy due to broadband anti-reflective precision lenses
• Universally configurable switching output
• Simple mounting via M30 central thread

Properties / Version (selected):
CellaTemp® PR 11 AF 1 — Measuring range: 0 - 1000 °C — Target size: 11 mm — Focus distance: 0.3 m — Measuring field shape: round — Measuring principle: single-colour

Measurement parameters (excerpt):
Measuring range: 0 - 1000 °C
Sensor: Thermopile
Spectral range: 8 - 14 µm
Response time t90: ≤ 60 ms
Measurement uncertainty: 0.75 % of temperature reading [°C] + 2.0 K
Repeatability: 1 K
Temperature coefficient: 0.1 K/K (T < 250 °C); 0.04 %/K (T > 250 °C)
Resolution current output: 0.2 K + 0.03 % of selected range
Resolution interface: 0.1 K

Electrical parameters (excerpt):
Analogue output: 0(4) - 20 mA linear, switchable, scalable
Resistance: ≤ 500 Ω
Switching output: Open Collector 24 V DC, ≤ 150 mA
Test input: 10 - 34 V DC (according to IEC 61131-2)
Interface: IO-Link
Power supply: 24 V DC +10 % / -20 %
Current consumption: ≤ 50 mA at 24 V DC

General parameters (excerpt):
Connection: M12 screw connector, 4-pin (A-coded)
Ambient temperature: 0 - 65 °C
Storage temperature: -20 - +80 °C
Permissible humidity: 95 % r.H. max. (non-condensing)
Dimensions: Ø 30 x 185 mm (without plug)
Housing: Stainless steel V2A (1.4305)
Protection class: IP 65 (according to DIN 40050)
Weight: approx. 0.4 kg

Adjustable parameters (overview):

• Analogue output 0/4 - 20 mA (scaling)
• Emissivity
• Damping time constant
• Hold time for maximum value memory
• Operation mode and switching points of the switching contact
• Reset to factory settings
• Temperature unit °C/°F
• Simulation of temperature (service function)

Functions (selected):

• Overtemperature signal and error/event signalling via digital interface
• Simulation of measured value for service and testing
• Reverse polarity protection for power supply, analogue output and switching output

Scope of delivery:
Infrared thermometer CellaTemp® PR; short manual; 2 fixing nuts

Measuring field table (selected rows for PR 11 AF 1):
Measuring distance 0.00 mm — Measuring field diameter 16.50 mm
Measuring distance 12.00 mm — Measuring field diameter 16.28 mm
Measuring distance 24.00 mm — Measuring field diameter 16.06 mm
Measuring distance 36.00 mm — Measuring field diameter 15.84 mm
Measuring distance 48.00 mm — Measuring field diameter 15.62 mm
Measuring distance 60.00 mm — Measuring field diameter 15.40 mm
Measuring distance 300.00 mm — Measuring field diameter 11.00 mm

Technical specifications:

• Model: CellaTemp® PR 11 (version AF 1 shown)
• Measuring range: 0 - 1000 °C
• Target size (selected): 11 mm (at 300 mm measuring distance)
• Spectral range: 8 - 14 µm
• Sensor type: Thermopile
• Response time (t90): ≤ 60 ms
• Measurement uncertainty: 0.75 % of reading + 2.0 K
• Repeatability: 1 K
• Interface: IO-Link
• Analogue output: 0/4 - 20 mA (linear, switchable, scalable)
• Switching output: Open Collector 24 V DC, ≤ 150 mA
• Power supply: 24 V DC +10 % / -20 %
• Connection: M12 screw connector 4-pin (A-coded)
• Ambient temperature range: 0 - 65 °C
• Storage temperature: -20 - +80 °C
• Protection class: IP 65
• Housing: Stainless steel V2A (1.4305)
• Dimensions: Ø 30 x 185 mm (without plug)
• Weight: approx. 0.4 kg
• Scope of delivery: Infrared thermometer, short manual, 2 fixing nuts
