Infrared thermometer CellaTemp PKF 67

two-colorfiber opticwith LED display

Product description

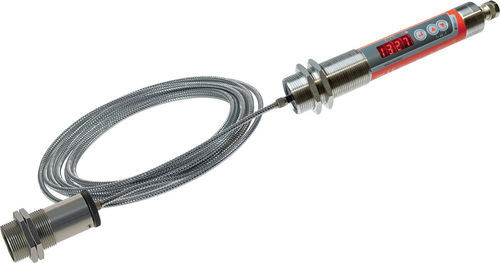

The CellaTemp® PKF 67 features separate electronics and measuring head. Infrared radiation is transmitted to the electronics via a fibre optic cable, allowing the measuring head to operate without cooling at ambient temperatures up to 250 °C. This design is suitable for confined mounting spaces and environments with high electromagnetic interference. Fibre optic cable lengths up to 50 m are possible. The latest generation of the CellaTemp® PK series includes a SMART "vitality indicator" that continuously monitors operating data and signals the optimal time for service or recalibration based on operating conditions.

Special features

• Measuring range 600 to 1,400 °C
• Fibre optic cable version — up to 50 m length possible
• Universally configurable switching output
• High optical resolution via precision lenses
• IO-Link interface
• All parameters adjustable via sensor pushbuttons or plant control interface
• 2 × switching outputs PNP open collector
• Easy mounting via M30 central thread
• Large, high-visibility LED display

Video
Improved & Smart CellaTemp PK pyrometers (product / series presentation).

Technical specifications

• Measuring range: 600 - 1400 °C
• Measuring principle: two-color
• Sensor: double photodiode
• Spectral range: 0.95 / 1.05 µm
• Response time t90: ≤ 10 ms (T > 700 °C)
• Measurement uncertainty: 1 % of reading [°C] plus 3.0 K
• Repeatability: 2 K
• Temperature coefficient: 0.05 %/K
• Resolution current output: 0.1 K + 0.005 % of selected measuring span
• Resolution interface: 0.1 K
• Resolution display: 1 K
• Measuring field / measuring field diameter (example version BF5): 16 mm
• Focal distance (example version BF5): 1.8 m
• Shape of the measuring field: round
• Measuring head: PA 41.03 (M30): focusing 1.8 m (sealed)
• Analog output: 0(4) - 20 mA linear, switchable, scalable
• Resistance (analog output): ≤ 500 Ω
• Switching outputs: 2 × PNP Open Collector 24 V DC, 2 × 150 mA max.
• Test input: 10 - 34 V DC (acc. to IEC 61131-2)
• Interface: IO-Link V1.1.3
• Power supply: 18 - 32 V DC
• Current consumption: ≤ 50 mA at 24 V DC
• Display: 4 × 7 segments LED red, digit height 8 mm
• Status display: 3 × LED
• Operator controls: 3 pushbuttons
• Connection: M12 screw connection 5-pin (A coded)
• Ambient temperature (electronics): 0 - 65 °C
• Storage temperature: -20 - +80 °C
• Permissible air humidity: 95 % RH max. (non-condensing)
• Dimension: Ø 30 x 210 mm (without plug)
• Housing material: Stainless steel V2A (1.4305)
• Type of protection: IP 65 (acc. to DIN 40050)
• Weight: approx. 0.4 kg
• Adjustable parameters (selection): analog output scaling (0/4-20 mA), ratio correction, transmission level of protective glass, damping time constant, peak picker hold time, operating mode/source/switching point and delays for switching contacts, temperature correction via interpolation points (X/Y), vitality indicator, service parameters, reset to factory setting, key lock, temperature unit °C/°F, simulation of temperature
• Functions (selection): overtemperature signal (internal temp > 75 °C), service function (simulation of a measured value), DTD (Discontinuous Temperature Detection) for discontinuous processes, diagnostic functions (reverse polarity, overload, incorrect supply voltage), reverse polarity protection
• Scope of delivery: Infrared thermometer CellaTemp PKF, measuring head, short operating manual, 2 fastening nuts. The fibre optic cable must be ordered separately.
• Software: SW 50
