Two-color pyrometer CellaPort PT 140

monochromaticdigital°C

Product description:

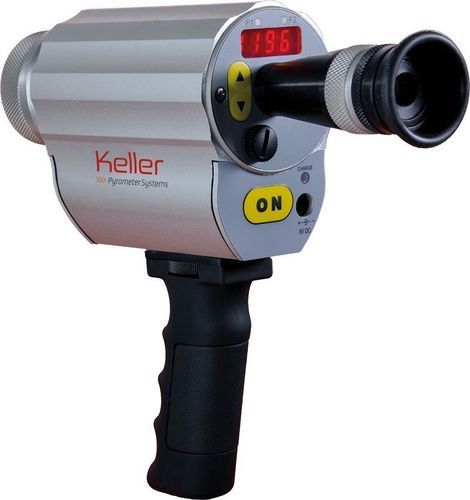

The CellaPort PT 140 is a digital two-colour pyrometer for temperature measurement from 500 to 3,000 °C. The two-colour measuring principle reduces sensitivity to interference from dust, vapour, dirty protective windows and changing target surfaces compared with single-colour pyrometers. A through-the-lens sighting enables easy and precise aiming of the measuring spot.

Special features:

• Measuring range 500 to 3,000 °C
• Focusable interchangeable lenses for precise adjustment of measuring distance
• Broadband anti-reflective precision optics
• Short measuring wavelengths
• 4-digit red LED display
• Standard feature: USB interface

Technical data (summary):

• Measuring principle: two-colour
• Measuring range: 500 - 3000 °C (available in several segments: e.g. 500 - 1400 °C; 650 - 1700 °C; 750 - 2400 °C; 850 - 3000 °C)
• Sensor: double photodiode
• Spectral range: 0.95 / 1.05 µm
• Response time t98: depending on range, typically ≤ 10 ms for higher temperature limits (range-specific values provided)
• Measurement uncertainty: 1 % of temperature reading [°C]
• Repeatability: 2 K
• Temperature coefficient: 0.05 %/K
• Resolution (interface): 0.1 K; Resolution (display): 1 K
• Display: 4-digit red LED, digit height 8 mm
• Status display: 2 x external LEDs, 3 x internal LEDs
• Control elements: 3 buttons
• Interface: USB
• Power supply: rechargeable battery pack; battery life approx. 15 hours (continuous operation at Ta = 23 °C)
• Ambient temperature (operating): 0 - 50 °C; Storage temperature: -20 - +60 °C
• Permissible humidity: 95 % r.H. max. (non-condensing)
• Dimension: Ø 65 mm x 197 mm (plus lens length)
• Housing: aluminium
• Protection class: IP 40 acc. to DIN 40050
• Weight: approx. 1.1 kg

Optical variants / Lenses:
Objectives and typical focus distances (examples):

• Standard objective lens PZ 20.01: focusing 0.4 m - ∞ (standard for several ranges)
• Close-up lens PZ 20.03: focusing 0.2 m - 0.4 m
• Telephoto lens PZ 20.06: focusing 1.2 m - ∞
• Objective F50 PZ 20.08: focusing 0.3 m - ∞ (for 500 - 1400 °C variant)

Version / measuring-field / distance ratio examples:

• Available versions AF 1, AF 2, AF 3, AF 4, AF 5, AF 6, AF 7, AF 8, AF 9, AF 20
• Examples of distance ratios per version: AF 1 = 80 : 1; AF 2 = 75 : 1; AF 3 = 120 : 1; AF 7 = 150 : 1; AF 8 = 140 : 1; AF 9 = 240 : 1; AF 20 = 55 : 1
• Example measuring range assignments by version: AF 20 = 500 - 1400 °C; AF 3 = 650 - 1700 °C; AF 6 = 750 - 2400 °C; AF 9 = 850 - 3000 °C

Functions and adjustable parameters:

• ATD (Automatic Temperature Detection) function for discontinuous processes
• Adjustable parameters: emissivity, emissivity table locations, transmittance, compensation of reflected ambient radiation, smoothing filter, operation mode and data hold time, ATD parameters, linearization function, LED status display, temperature unit °C/°F, automatic shutdown, measurement channel (two-colour / single-colour), signal monitoring threshold level

Scope of delivery (typical):

• Pyrometer CellaPort PT
• Protective and carrying case
• Charger
• USB cable VK 11/D (1.8 m)
• Software CellaView
• Short manual
