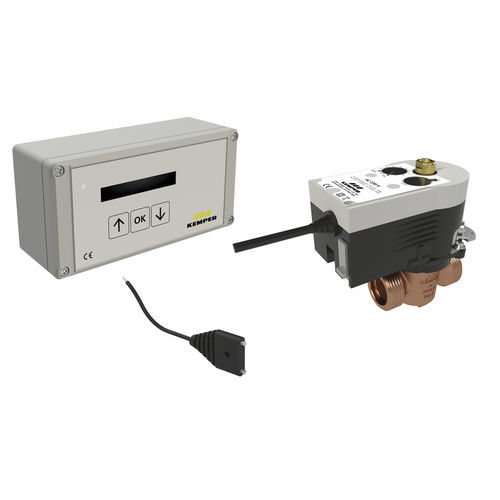

Leakage detection system 620 00 series
integrated

leakage detection system
leakage detection system
leakage detection system
Add to favorites
Compare this product


Characteristics

Type
leakage
Other characteristics
integrated

Description

active monitoring system with alarm signal to protect against water damage by reliable detection of leakage in water distribution systems by means of water sensors consisting of control unit, water sensor and KHS isolating valve with servo drive 230 V, figure 686 04 low pressure loss soft close stop valve to avoid water hammer for new build and retrofit with the functional options: leakage monitoring and timed-controlled protection, leakage monitoring and time-controlled flushing of the drinking water system, protection without leakage monitoring leakage control system with integrated timer, for the connection of up to two reporting lines with maximum 25 water sensors, as well as for the connection of max. 10 parallel-operated maximum flow isolating ball valves with detachable visual and / or acoustic error signal max. 16 programmable events display with background light Standards and Approvals valve(s) with DVGW approval according to DVGW worksheet W 570 according to accepted materials list from German environmental agency up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1 DIN EN 13828 ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT
