Air filter cartridge 20301425

finepolyesterindustrial

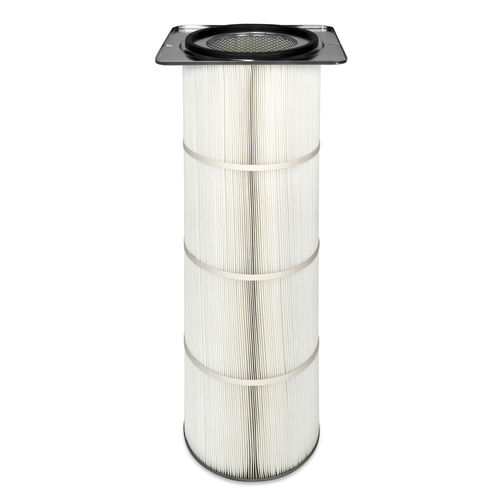

Product information "Filter cartridge - 327x1200 mm - ePTFE membrane - 25 m² for ESTA" Replica replacement filter as an alternative cartridge for ESTA extraction systems. Filter cartridge in the dimensions 327x1200 mm for use in: • ESTA WELDEX FE High-performance Cleaning filter made of Polyester fleece with ePTFE membrane laminated on and a Filter area of 25 m². Thanks to the microporous membrane, even particularly fine dusts are separated directly on the filter surface and can be easily cleaned again. The Filter cartridge complies with Dust classification M, tested in accordance with DIN EN 60335-2-69:2010 Annex AA, and achieves a very high Filter efficiency of ≥ 99.9 %. The Filter medium is encapsulated in synthetic resin at the top and bottom. The design of the Filter cartridge is designed for cleaning using jet pulses. The pressure generated inside the Filter cartridge repels the accumulated dust. Straps running around the outside of the filter cartridge support the filter cartridge during jet pulse cleaning.
