Welding downdraft table 95515301

for general applicationsfor dust removalself-cleaning

Overview

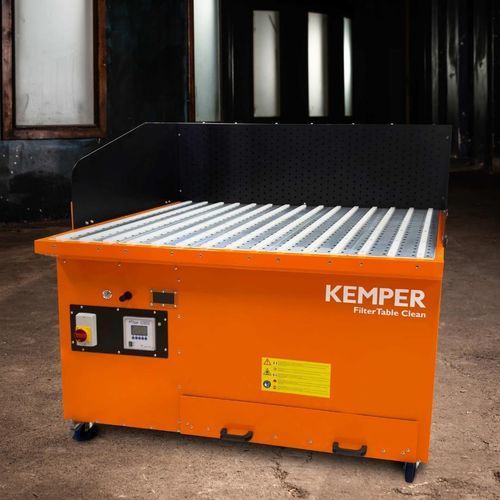

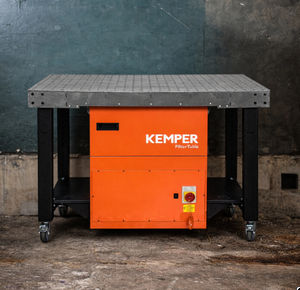

The KEMPER FilterTable Clean is a welding extraction table with integrated extraction and filtration for continuous industrial and workshop use. Delivered as a plug-&-play all-in-one unit, it includes an integrated fan and filter and is ready for immediate operation.

Key features

• Plug-&-Play all-in-one system: integrated fan and filter
• Full-surface direct extraction across the perforated worktop
• Automatic PTFE filter cartridge cleaning
• Integrated spark pre-separator (aluminium knitted mesh)
• Additional HEPA H13 post-filter
• Intuitive control display and large dust collection drawer
• Available with rear panel (configurable)

Advantages

• Approx. 30% higher extraction capacity compared with common market models
• Automatic cleaning maintains constant volume flow and extends filter life
• Pre-separator reduces coarse particles and lowers fire risk
• Ready-to-use unit reduces installation time and need for external filtration

Applications / materials

• Continuous operation in workshops and industrial environments
• Suitable welding processes: laser, TIG, MIG/MAG, manual electrode
• Typical materials: steel, aluminium, stainless steel

Technical data

• Model: FilterTable Clean
• Brand: KEMPER
• SKU: 95520501
• Weight: 470 kg
• Dimensions (D×W×H): 1150 mm × 2000 mm × 1410 mm
• Filter stages: 2
• Filter area: 40 m²
• Separation efficiency: ≥ 99.95%
• Max. fan capacity: 5000 m³/h
• Rated current: 6.5 A
• Sound pressure level: 78 dB(A)
• Available widths (configurator): 1620 mm, 1940 mm (default: 1940 mm)
• Supply voltage: 3×400 V / 50 Hz (optionally 3×460 V / 60 Hz)
• Optional ATEX components (does not constitute an explosion-protected complete system)
