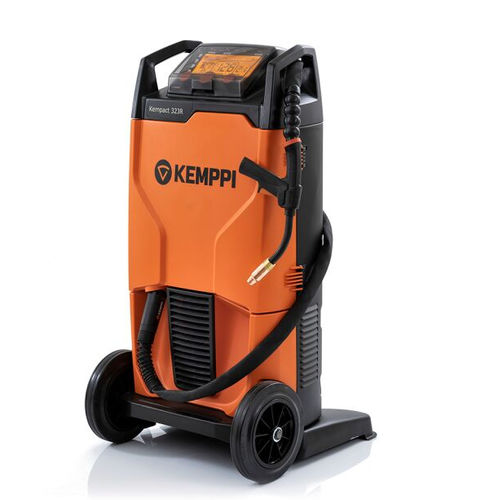

MIG-MAG welder Kempact 323R

three-phasemobilewith 4-roll wire feeder

NEW STANDARDS IN THE COMPACT MIG/MAG CLASS Designed for the modern welding workshop, Kempact RA expresses stylish and purposeful design through high build quality and functional user benefits, making weld tasks productive, accurate and efficient. Kempact RA is built on Kemppi’s latest power source platform, ensuring optimal welding performance and excellent power cost efficiency. Eleven model options include 180, 250 and 320 ampere power sources, including a choice of either Regular (R) or Adaptive (A) control panel interface, which serve the wide ranging needs of metal fabrication workshops. Delivery specification includes welding gun and earth return lead pack. Technical specifications Product code Kempact 323R, GX 403 G, 3.5m - P2211GX Kempact 323R, GX 303 G, 3.5m - P2229GX, Only 300A/35% range Kempact 323R, GX 403 G, 5m - P2212GX Kempact 323R, GX 303 G, 5m - P2230GX, Only 300A/35% range onnection voltage 3~ 50/60 Hz 400 V ±15% Fuse (delayed) 10 A Welding range 10 V/20 A–32.5 V/320 A Open circuit voltage 40V Wire feed speed adjustment 1.0 - 20.0 m/min Filler wire sizes (Fe solid) 0.8…1.2 mm Filler wire sizes (Fe cored) 0.8…1.2 mm Filler wire sizes (Ss) 0.8…1.2 mm Filler wire sizes (Al) 1.0…1.2 mm Operating temperature range -20…+40 °C External dimensions LxWxH 623 × 579 × 1070 mm Weight (no accessories) 44 kg Degree of protection IP23S Standards IEC 60974-1, IEC 60974-5, IEC 60974-10
