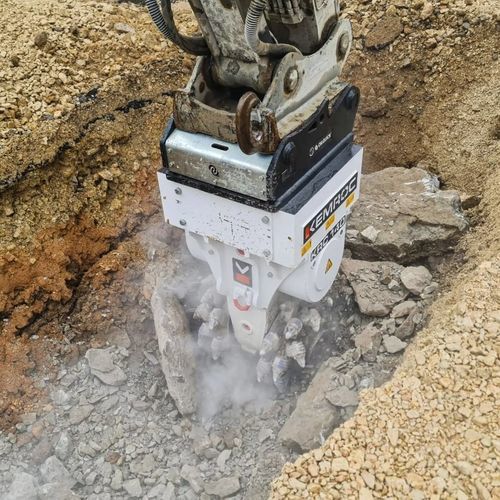

Excavator hydraulic milling cutter KRC 40

rotary

Product
Narrow trenching cutter attachment KRC 40, part of the KRC Bullhead Cutters family. Designed for narrow trenching operations on excavators.

Technical data (summary)

• Recommended excavator weight: 7 - 11 t (15,000 - 25,000 lb)
• Rated power: 40 kW (55 hp)
• Cutter length (A): 980 mm (39 in)
• Cutting width (B): 530 mm (21 in)
• Average drum diameter (C): 415 mm (16 in)
• Recommended rpm: 110 rpm
• Recommended oil flow: 80 l/min (21 gal/min)
• Max. oil flow: 110 l/min (29 gal/min)
• Max. operating pressure: 400 bar (5,800 psi)
• Torque at 380 bar: 4,800 Nm (3,500 lbf·ft)
• Cutting force at 380 bar: 23 kN (5,200 lbf)
• Max. rock compressive strength: 30 MPa (4,350 psi)
• Weight: 475 kg (1,045 lb)
• Pick box: PH 20 Type
• Number of picks: 60 pcs
• Standard pick: 16/46/38/20
• Standard hole pattern: LB10
• Compatible rotation unit (KRM): KRM35

Notes
Part of the KRC Bullhead Cutters range; intended for narrow trenching operations and compatible with the specified KRM rotation unit. Technical values include metric and imperial equivalents where provided.
