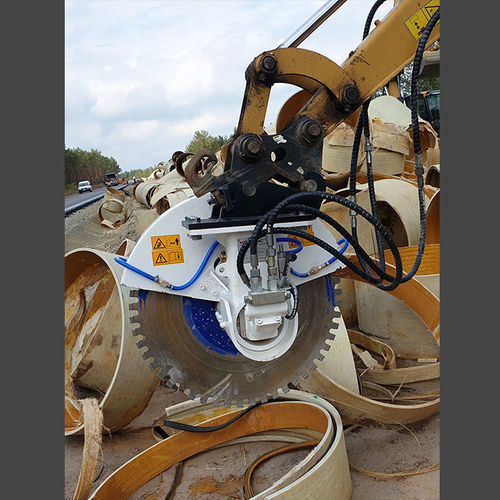

Circular saw KDS 20for stone and concreteabrasive diamond
Add to favorites
Compare this product
Characteristics
- Technology
- circular
- Treated material
- for stone and concrete
- Other characteristics
- abrasive diamond
- Circular saw blade diameter
Max.: 1,000 mm
(39 in)Min.: 600 mm
(24 in)
Description
Product
Available media
Features / Technical specifications
- Product family: KDS diamond saws
- Model: KDS 20
Available media
- Product photos and technical drawing (various views)
- Product video (embedded on the product page)
Features / Technical specifications
- Recommended excavator weight: 2 – 4 t
- Max. rated power: 23 kW
- Max. cutting depth (A): 400 mm
- Cutting wheel Ø (C): 600 | 1000 mm
- Max. cutting wheel Ø (C): 1000 mm
- Max. speed: 1100 rpm
- Recommended speed: 730 – 1000 rpm
- Recommended oil flow: 25 – 35 l/min
- Max. operating pressure: 350 bar
- Torque at 350 bar: 200 Nm
- Drive unit weight approx.: 105 kg
- Protective cover weight: 57 | 72 kg
- Cutting wheel weight: 30 kg
- Total weight: 192 | 207 kg
- Standard hole pattern: LB10
- Matching rotation unit (KRM): KRM20
