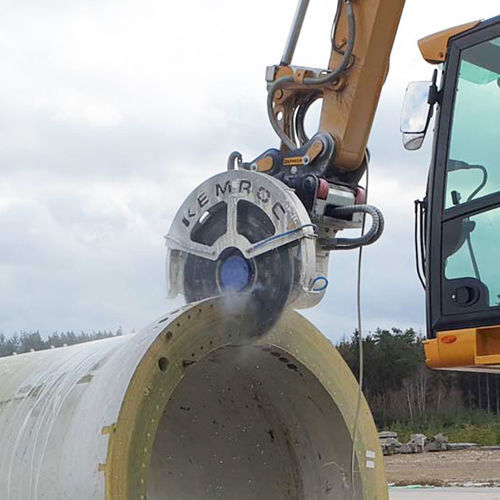

Circular saw KDS 50for concretefor asphaltfor stone
Add to favorites
Compare this product
Characteristics
- Technology
- circular
- Treated material
- for concrete, for stone, for asphalt
- Applications
- building site
- Other characteristics
- hydraulic
- Circular saw blade diameter
Max.: 2,000 mm
(79 in)Min.: 800 mm
(31 in)
Description
Product
Applications
Key specifications
Compatibility & weight
- Model: KDS 50
- Series: KDS Diamond Saws
- Brand: KEMROC
- Type: Hydraulic diamond saw attachment for excavators
Applications
- Cutting asphalt, concrete and rock in construction and roadworks
- Trenching, profile cutting and removal of paved surfaces
Key specifications
- Recommended excavator weight: 15 – 25 t (35,000 – 55,000 lb)
- Max. Rated power: 85 KW (115 hp)
- Max. Cutting depth (A): 705 mm (28 inch)
- Cutting wheel diameter (C): 800 | 2000 mm (31 | 79 in)
- Max. Cutting wheel diameter (C): 1800 mm (71 inch)
- Max. rpm: 1100 rpm
- Recommended rpm: 420 – 1000 rpm
- Recommended oil flow: 55 – 130 l/min (15-34 gal/min)
- Max. operating pressure: 350 bar (5080 psi)
- Torque at 350 bar: 700 Nm (500 lbf.ft)
Compatibility & weight
- Weight of drive unit, approx.: 420 kg (926 lb)
- Weight of protective cover: 90 | 190 kg (198 | 419 lbs)
- Weight of cutting wheel: 100 kg (220 lb)
- Total weight: 610 | 710 kg (1345 | 1565 lbs)
- Standard hole pattern: LB20
- Compatible rotation unit (KRM): KRM30
