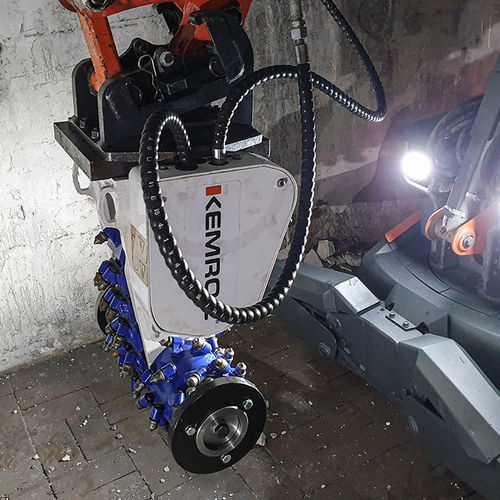

Rotary hydraulic drive system KRX 110
Add to favorites
Compare this product
Characteristics
- Type
- rotary
Description
Product overview
Technical data
Additional drawing / illustration
Specifications
- Model: KRX 110
- Product family: KRX Powertool drives
- Hydraulic milling and rotary cutting unit for excavators, intended for rock milling, trenching and surface profiling
Technical data
- Recommended excavator weight: 20 – 35 t (45K – 75K lb)
- Rated power: 110 kW (150 hp)
- Length of drive unit: 842 mm (33 in)
- Torque at 380 bar: 29,800 Nm (22,000 lbf·ft)
- Max. idle oil flow: 360 l/min (95 gal/min)
- Max. operating pressure: 400 bar (5,800 psi)
- Weight without attachment: 540 kg (1,190 lb)
- Hex connection, standard: 160 mm (6 in)
- Standard hole pattern: LB30
- Length of standard cutter head: 430 mm (17 in)
- Diameter of standard cutter head: 520 mm (20.5 in)
- Cutting force at 380 bar: 114.4 kN (25,700 lbf)
- Recommended idle rpm: 75 rpm
- Recommended idle oil flow: 205 – 360 l/min (54 – 95 gal/min)
- Recommended idle oil flow (alternate entry on page): 210 – 350 l/min (55 – 92 gal/min)
- Weight of milling attachment: 142 kg (313 lbs)
- Total weight: 682 kg (1,503 lbs)
- Pick box: PH 32HD Type
- Number of picks: 25 pcs
- Standard pick (round shaft): 17/75/70/30 Q type
- Standard pick (dragon tooth): DT 22/90/70/30 HQ type
- Max. drill diameter: 1,300 mm (51 in)
- Min. drill diameter: 270 mm (11 in)
- Max. drilling depth at max. drill diameter: 4,000 mm (158 in)
- Max. drilling depth at min. drill diameter: 7,000 mm (276 in)
- Max. uniaxial compressive strength of the ground: 50 MPa (7,252 psi)
Additional drawing / illustration
- Technical drawing image available (product drawing file shown on page)
Specifications
- Total weight: 682 kg
- Weight without tool: 540 kg
- Rated power: 110 kW
- Torque at 380 bar: 29,800 Nm
- Max. oil flow: 360 l/min
- Max. operating pressure: 400 bar
- Length of drive unit: 842 mm
- Standard hex connection: 160 mm
- Standard cutter head diameter: 520 mm
- Standard cutter head length: 430 mm
- Cutting force at 380 bar: 114.4 kN
- Recommended speed: 75 rpm
- Pick box: PH 32HD
- Number of picks: 25
- Drill diameter max/min: 1300 / 270 mm
- Drilling depth max (diam. max / min): 4000 mm / 7000 mm
- Max. uniaxial compressive strength: 50 MPa
