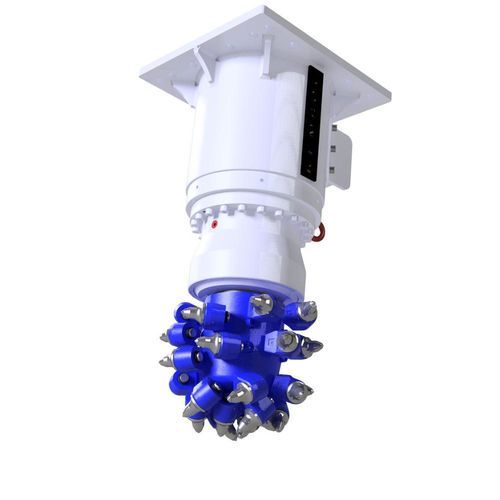

Rotary hydraulic drive system KRX 120for drilling rigs
Add to favorites
Compare this product
Characteristics
- Type
- rotary
- Applications
- for drilling rigs
Description
Product overview
Key specifications
Performance & capabilities
Compatibility & installation
Use cases & recommended conditions
Weight & dimensions
Ordering information
- KRX 120 is a powertool drive designed to operate milling, cutting and drilling attachments on medium‑to‑large excavators.
Key specifications
- Recommended excavator weight: 25 – 40 t
- Rated power: 120 kW (160 hp)
- Torque at 380 bar: 29,800 Nm
- Max. operating pressure: 400 bar
- Max. idle oil flow: 360 l/min
- Recommended idle oil flow: 190 – 320 l/min (alternate entry: 175 – 295 l/min)
- Recommended idle rpm: 65 rpm
Performance & capabilities
- Cutting force at 380 bar: 114.4 kN
- Standard cutter head: length 430 mm, diameter 520 mm
- Drilling diameters: min 270 mm — max 1300 mm
- Drilling depths: up to 4,000 mm at max diameter; up to 7,000 mm at min diameter
- Max. uniaxial compressive strength of ground: 50 MPa
Compatibility & installation
- Hex connection (standard): 160 mm
- Standard hole pattern: LB30
- Length of drive unit: 842 mm
- Pick box type: PH 32HD
- Number of picks (standard): 25
- Standard picks: 17/75/70/30 Q (round shaft) and DT 22/90/70/30 HQ (dragon tooth)
Use cases & recommended conditions
- Suitable for heavy milling, trenching, surface profiling and rotary drilling on rock, asphalt and mixed ground within specified strength limits
- Recommended for excavators of 25–40 t class with hydraulic supply matching the indicated flows and pressures
Weight & dimensions
- Weight without attachment: 540 kg
- Weight of milling attachment: 142 kg
- Total weight (with attachment): 682 kg
- Length of standard cutter head: 430 mm; diameter: 520 mm
Ordering information
- Model name: KRX 120
- Product family: KRX Powertool drives
- Pick box: PH 32HD — number of picks: 25
