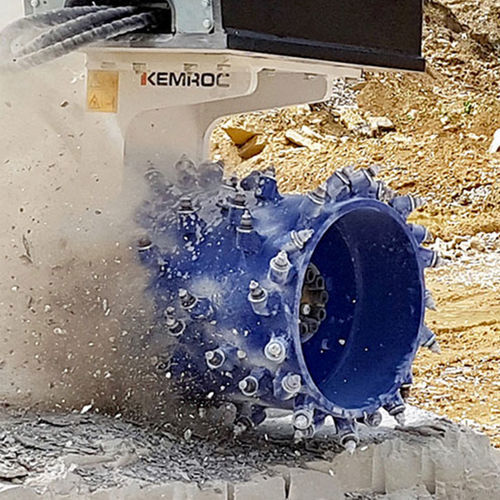

Excavator hydraulic milling cutter ES 30 HD
rotary

Excavator hydraulic milling cutter - ES 30 HD - KEMROC Spezialmaschinen GmbH - rotary
Excavator hydraulic milling cutter - ES 30 HD - KEMROC Spezialmaschinen GmbH - rotary
Add to favorites
Compare this product

Characteristics

Applications
for excavators
Specifications
rotary

Description

Overview
  • Hydraulic cutter head for medium excavators, designed for continuous cutting and profiling in construction and civil engineering. Recommended excavator weight: 5–10 t.


Applications
  • Trenching and profile cutting on construction sites
  • Road and pavement maintenance
  • Surface preparation for utilities and repair works
  • Asphalt and concrete milling in restricted-access areas


Key technical specifications
  • Product family: ES Cutter Heads
  • Recommended excavator weight: 5 – 10 t (10000 – 20000 lb)
  • Rated power: 30 kW (40 hp / 30 kW)
  • Cutting wheel diameter (C): 520 mm (20 inch)
  • Cutting width (B): 300 mm (12 in)
  • Cutting depth: 110 mm (4 in)
  • Min. rpm: 80 U/min (80 rpm)
  • Min. oil flow: 60 l/min (16 gal/min)
  • Max. oil flow: 110 l/min (29 gal/min)
  • Max. operating pressure: 400 bar (5800 psi / 400 bar)
  • Torque at 380 bar: 4400 Nm (3200 lbf·ft)
  • Cutting force at 380 bar: 17 kN (3800 lbf)
  • Weight of base drive: 125 kg (276 lbs)
  • Pick box: PH 20 Type
  • Number of picks: 35 Pcs
  • Standard pick: 16/48/32/20 H
  • Standard hole pattern: LB10
  • Compatible rotation unit (KRM): KRM30


Compatibility and maintenance
  • Compatible with rotation unit KRM30 and standard pick box PH 20
  • Contains 35 picks; standard pick type 16/48/32/20 H
  • Operate within specified oil flow and pressure ranges to ensure correct torque and cutting force
  • Inspect and replace worn picks and fasteners according to operating hours


Ordering and spare parts
  • Provide model ES 30 HD and hole pattern LB10 when ordering parts or accessories
  • Replacement picks, pick boxes and spare parts available from the manufacturer or authorized distributors
