Excavator hydraulic milling cutter ES 70 HD
rotary

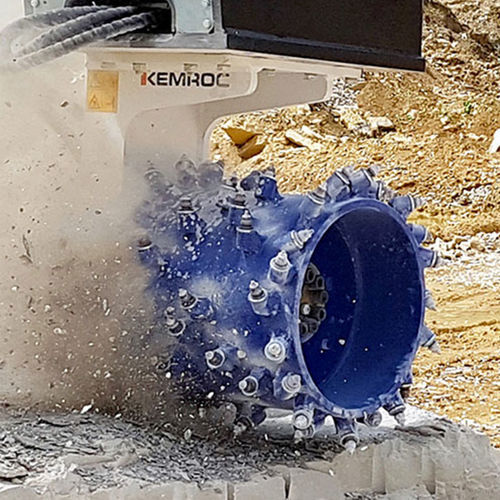

Excavator hydraulic milling cutter - ES 70 HD - KEMROC Spezialmaschinen GmbH - rotary
Excavator hydraulic milling cutter - ES 70 HD - KEMROC Spezialmaschinen GmbH - rotary
Add to favorites
Compare this product

Characteristics

Applications
for excavators
Specifications
rotary

Description

Product
  • Type: ES cutter head
  • Model: ES 70 HD
  • Intended for hydraulic excavators 20–25 t


Applications
  • Excavation milling, asphalt and concrete milling, rock profiling and trenching
  • On-site surface preparation and material removal in construction and civil works


Technical data
  • Recommended excavator weight: 20 – 25 t (44,000 – 55,000 lb)
  • Rated power: 80 kW (105 hp)
  • Cutting wheel diameter (C): 670 mm (26 in)
  • Cutting width (B): 600 mm (24 in)
  • Cutting depth: 190 mm (7 in)
  • Min. rpm: 55 rpm
  • Oil flow (min/max): 180 l/min (48 gal/min) / 210 l/min (55 gal/min)
  • Max. operating pressure: 400 bar (5,800 psi)
  • Torque at 380 bar: 19,500 Nm
  • Cutting force at 380 bar: 58 kN
  • Weight of base drive: 280 kg (617 lb)
  • Pick box: PH 20 Type
  • Number of picks: 69 pcs
  • Standard pick: 16/48/32/20 H
  • Standard hole pattern: LB20


Compatibility & maintenance
  • Compatible rotation unit (KRM): KRM50
  • Designed for standard PH 20 pick box configuration; replacement picks and wear parts available
  • Regular inspection of picks and mounting pattern recommended to maintain cutting performance
