Rotary hydraulic drive system EBA 2300
for drilling rigs

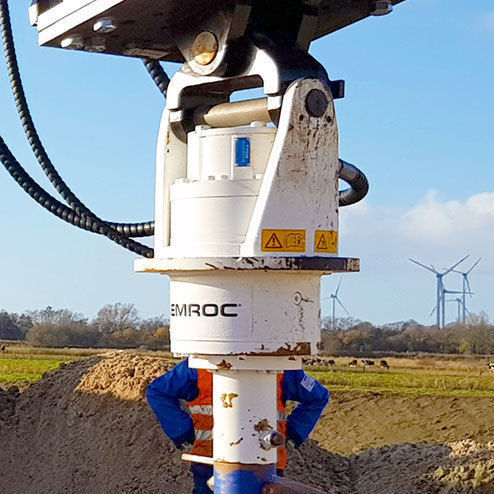

Rotary hydraulic drive system - EBA 2300 - KEMROC Spezialmaschinen GmbH - for drilling rigs
Rotary hydraulic drive system - EBA 2300 - KEMROC Spezialmaschinen GmbH - for drilling rigs
Rotary hydraulic drive system - EBA 2300 - KEMROC Spezialmaschinen GmbH - for drilling rigs - image - 2
Rotary hydraulic drive system - EBA 2300 - KEMROC Spezialmaschinen GmbH - for drilling rigs - image - 3
Rotary hydraulic drive system - EBA 2300 - KEMROC Spezialmaschinen GmbH - for drilling rigs - image - 4
Rotary hydraulic drive system - EBA 2300 - KEMROC Spezialmaschinen GmbH - for drilling rigs - image - 5
Rotary hydraulic drive system - EBA 2300 - KEMROC Spezialmaschinen GmbH - for drilling rigs - image - 6
Rotary hydraulic drive system - EBA 2300 - KEMROC Spezialmaschinen GmbH - for drilling rigs - image - 7
Rotary hydraulic drive system - EBA 2300 - KEMROC Spezialmaschinen GmbH - for drilling rigs - image - 8
Add to favorites
Compare this product

Characteristics

Type
rotary
Applications
for drilling rigs

Description

Product
  • Auger drive attachment for excavators, designed for drilling operations in soil and rock with high torque output.


Technical data (summary)
  • Recommended excavator weight: 18 – 35 t (40,000 – 75,000 lb).
  • Rated power: 110 kW (150 hp).
  • Cutter length (A): 500 mm (20 in).
  • Cutting width (B): 990 mm (39 in).
  • Recommended rpm: 70 rpm.
  • Recommended oil flow: 150 – 320 l/min (40 – 85 gal/min).
  • Max. oil flow: 360 l/min (95 gal/min).
  • Max. operating pressure: 400 bar (5,800 psi).
  • Torque at 380 bar: 27,200 Nm (20,050 lbf·ft).
  • Cutting force at 380 bar: 181.3 kN (40,760 lbf).
  • Weight: 360 kg (795 lb).
  • Output drive connection: H 80 Type.
  • Pick box: PH 22 Type.
  • Standard pick: 22/46/38/22 H.
  • Max. drill diameter: 1,200 mm (47 in).
  • Min. drill diameter: 200 mm (12 in).
  • Max. drilling depth at max. drill diameter: 4,000 mm (157 in).
  • Max. drilling depth at min. drill diameter: 8,000 mm (315 in).
  • Max. rock compressive strength: 50 MPa (7,300 psi).


Illustrations
  • Includes technical drawing and multiple application photos showing EBA 2300 in operation.


Features / technical specifications
  • Model: EBA 2300
  • Recommended excavator weight: 18 – 35 t
  • Rated power: 110 kW
  • Cutter length (A): 500 mm
  • Cutting width (B): 990 mm
  • Recommended rpm: 70 rpm
  • Recommended oil flow: 150 – 320 l/min
  • Max. oil flow: 360 l/min
  • Max. operating pressure: 400 bar
  • Torque at 380 bar: 27,200 Nm
  • Cutting force at 380 bar: 181.3 kN
  • Weight: 360 kg
  • Output drive connection: H 80 Type
  • Pick box: PH 22 Type
  • Standard pick: 22/46/38/22 H
  • Max. drill diameter: 1,200 mm
  • Min. drill diameter: 200 mm
  • Max. drilling depth (max dia): 4,000 mm
  • Max. drilling depth (min dia): 8,000 mm
  • Max. rock compressive strength: 50 MPa
