Rotary hydraulic drive system EBA 2800

Product overview
The EBA 2800 is an excavator-mounted rock cutter designed for trenching, profiling and drilling in rock and reinforced concrete. It is intended for use on 20–40 t excavators and connects via an H 80 Type output drive. The unit is equipped with a PH 22 pick box and supplied with a standard pick set (22/46/38/22 H).

Technical data

• Recommended excavator weight: 20 – 40 t (45,000 – 90,000 lb)
• Rated power: 150 kW (200 hp approx.)
• Cutter length (A): 500 mm (20 in)
• Cutting width (B): 990 mm (39 in)
• Recommended rpm: 65 rpm
• Recommended oil flow: 180 – 330 l/min (48 – 87 gal/min)
• Max. oil flow: 360 l/min (95 gal/min)
• Max. operating pressure: 400 bar (5800 psi)
• Torque at 380 bar: 30,300 Nm (approx. 22,350 lbf·ft)
• Cutting force at 380 bar: 201.8 kN (approx. 45,365 lbf)
• Weight: 360 kg (795 lb)
• Output drive connection: H 80 Type
• Pick box: PH 22 Type
• Standard pick: 22/46/38/22 H
• Max. drill diameter: 1500 mm (59 in)
• Min. drill diameter: 200 mm (12 in)
• Max. drilling depth at max. drill diameter: 4000 mm (157 in)
• Max. drilling depth at min. drill diameter: 8000 mm (315 in)
• Max. rock compressive strength: 50 MPa (approx. 7300 psi)

Applications

• Trenching and channel cutting in rock
• Slope trimming and profiling
• Tunnel face preparation and channeling
• Foundation and utility excavation in hard ground
• Controlled rock removal near structures

Compatibility & installation

• Suitable carriers: excavators 20–40 t
• Hydraulic requirements: recommended flow 180–330 l/min, max flow 360 l/min, max pressure 400 bar
• Drive connection: H 80 Type; pick box: PH 22 Type
• Rated power: 150 kW; recommended operating speed: approx. 65 rpm
• Unit weight and mounting must be verified against carrier specifications; follow manufacturer installation instructions

Illustration

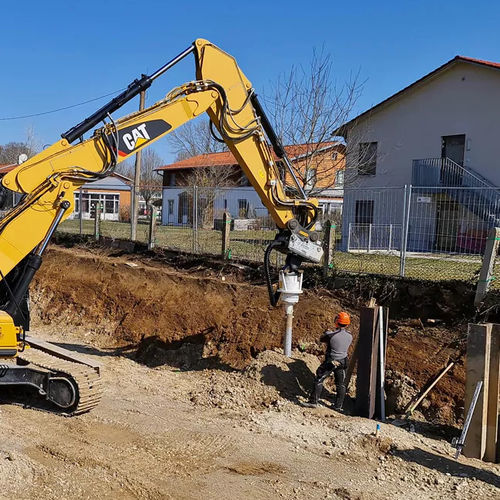

Technical drawing and product images are provided on the product page by the manufacturer.

Technical specifications

• Model: EBA 2800
• Recommended excavator weight: 20–40 t
• Rated power: 150 kW
• Cutter length: 500 mm
• Cutting width: 990 mm
• Recommended speed: 65 rpm
• Hydraulic flow (recommended): 180–330 l/min
• Hydraulic flow (max): 360 l/min
• Operating pressure (max): 400 bar
• Torque (380 bar): 30,300 Nm
• Cutting force (380 bar): 201.8 kN
• Unit weight: 360 kg
• Output drive: H 80 Type
• Pick box: PH 22 Type
• Standard pick set: 22/46/38/22 H
• Drill diameter range: 200–1500 mm
• Max drilling depth (max dia): 4000 mm
• Max drilling depth (min dia): 8000 mm
• Max rock compressive strength: 50 MPa
