Electric stop unit Electromagnetic pallet stopper

Pallet Stopperpallet

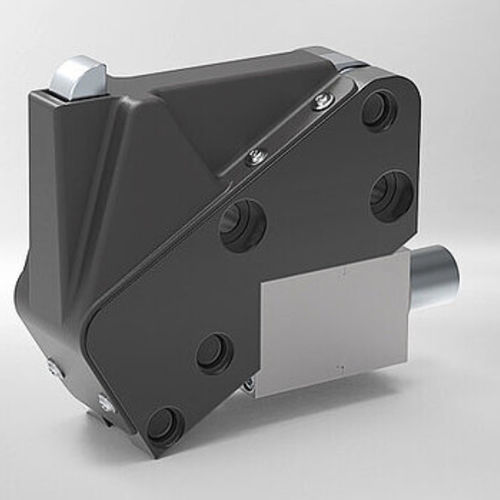

The pallet stopper is an electromechanical device to stop and separate conveyor trays and transport pallets in workpiece transport systems. It combines compact, high-force linear solenoid actuation with optional damping to enable soft stopping and rapid release, making it suitable for short cycle times and space-constrained installations.

Primary functions

• Damping: Softly stop the transport pallet using an integrated damper.
• Lowering function: Release the transport pallet after a release signal (stopper moves downward and pallet continues).

Design and operation

• Actuation: High-performance linear solenoids deliver very high forces in a small installation space.
• Switching speed: Electromagnets switch very quickly, suitable for short cycle times.
• Space-saving: Compact stopper design allows high pallet speeds while minimizing required installation space.
• Variants: Available with or without a damping module depending on application requirements.

Characteristics / Specifications

• Maximum workpiece carrier weight: 25 (15) kg (with damper)
• Belt speed: 20 m/min
• Operating voltage: 24 V DC
• Duty cycle: 100%
• Nominal power: 40.3 W
• IP protection: IP40
• Standard product references: MPS0400001 (without damper), MPS0400003 (with damper)
