  • Compact optical shutter by Kendrion for reliable blocking of light and laser beams in industrial and medical environments. Available in monostable and bistable versions with miniature and high-performance variants. Product page: https://www.kendrion.com/en/products-services/solenoids-actuators/optical-beam-shutters/compact-optical-shutter


Models & features

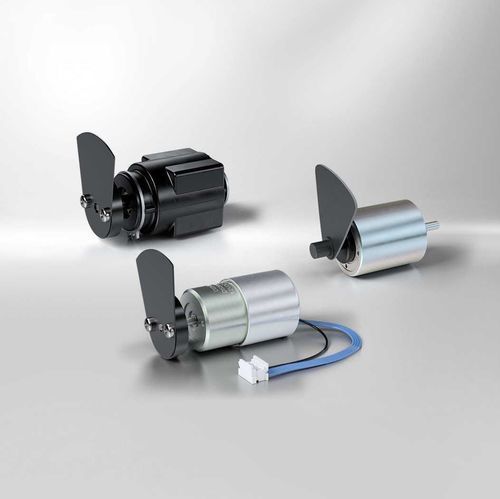

  • Miniature optical shutter D1: For space-constrained installations. Housing diameter approx. 15 mm. Lifetime typical 10 million cycles. Very fast closing time < 20 ms. Form: paddle. Material: polyamide or customer-specific. Rotation angle: 65°. Minimum order quantity: 1 piece.
  • High Performance optical shutter D2: For demanding applications. Fast switch time approx. 30 ms. Lifetime at least 10 million cycles. Integrated photodiodes for position detection and damping to reduce bounce. Form: paddle. Material: aluminium or customer-specific. Rotation angle: 35°. Minimum order quantity: 1 piece.
  • Bistable optical shutter CDR030: Bistable design based on the CDR030 rotary magnet; holds both end positions without power using built-in permanent magnets. Lifetime typical up to 20 million cycles. Typical closing time approx. 30 ms. Form: paddle. Material: aluminium or customer-specific. Available rotation angles: 45°, 60°, 90°.


Benefits (short)
  • Long operational lifetime
  • Short closing times for precise beam control
  • Low-emission materials and options for custom materials
  • High flexibility for customer-specific adaptations


Technical specifications
  • Diameter: 1 - 15 mm (others on request)
  • Supply voltage: 12 V DC (D1), 24 V DC (D2) (others on request)
  • Duty cycle: 100% ED
  • Rotation angle: 65° (D1) - 30° (D2) (others on request)
  • Switching time: 5 - 30 ms
  • Switch frequency: max. 5 Hz
  • Lifetime: 10 million cycles (typical; up to 20 million for CDR030)
  • Operating temperature: -5 to 35 °C (others on request)
