Stepper motion controller CODESYS Starterkit Control & MotionBLDCModbus RTURS-232
Add to favorites
Compare this product
Characteristics
- Motor type
- stepper, BLDC
- Signal type
- Modbus RTU, RS-232, EtherCAT, CANopen, USB, Modbus TCP
- Technology
- integrated, closed-loop, embedded, open-loop
- Other characteristics
- with programmable logic controller (PLC), with I/O
Description
Overview

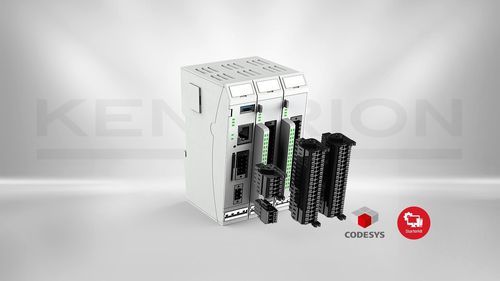

The CODESYS Starter Kit Control & Motion is an entry-level package for automation tasks with integrated drive control. It combines PLC programming with CODESYS Motion and is especially suitable for applications where stepper or BLDC motors need to be controlled in addition to I/O signals.
Advantages
Application Areas
Key Technical Data
The CODESYS Starter Kit Control & Motion is an entry-level package for automation tasks with integrated drive control. It combines PLC programming with CODESYS Motion and is especially suitable for applications where stepper or BLDC motors need to be controlled in addition to I/O signals.
Advantages
- Quick start in automation and motion control
- Integrated CODESYS V3 PLC
- EtherCAT MainDevice for modular expansion
- OPC UA Server for standardized communication
- WebVisu for visualization
- Control of stepper and BLDC motors
- Expandable with Vico HMI or additional FIO EtherCAT I/O modules
Application Areas
- Automation projects with drive control
- PLC programming
- Motion control applications
- Machine and plant control
- Test and development setups
- EtherCAT-based control and drive systems
Key Technical Data
- Model: CODESYS Starter Kit Control & Motion
- Article number: 694 300 99 11
- Function: CODESYS starter kit with motion control
- Software: CODESYS V3 PLC, CODESYS Motion, WebVisu
- Communication: EtherCAT, OPC UA
- Modules: FIO Controller 116, FIO DI16/DO16, FIO Drive Control
- I/O module: 16 digital inputs / 16 digital outputs
- Drives: stepper and BLDC motors
