Brushless motor controller VIPERBLDCmicrosteppingthree-phase
Add to favorites
Compare this product
Characteristics
- Motor type
- stepper, microstepping, three-phase, brushless, BLDC, permanent magnet
- Applications
- for industrial vehicles, motion control, for electric vehicles, for actuators
- Input/output
- digital input, analog input, digital output, I/O, analog output
- Other characteristics
- RS-232, encoder input, CANbus, field-oriented, PWM
- Input voltage
Max.: 80 V
Min.: 8 V
Description
Overview

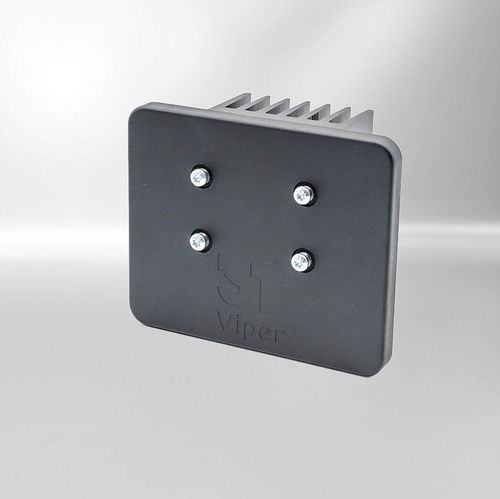

VIPER is a customizable motor controller for battery-powered and highly dynamic applications. The solution is designed for robust environments and is especially suitable for mobile devices, hydraulic systems, and applications where precise motor control, high efficiency, and compact integration are important.
Advantages
Application Areas
Key Technical Data
VIPER is a customizable motor controller for battery-powered and highly dynamic applications. The solution is designed for robust environments and is especially suitable for mobile devices, hydraulic systems, and applications where precise motor control, high efficiency, and compact integration are important.
Advantages
- Sensorless motor control reduces components and complexity
- High efficiency of up to 98%
- Adaptable to product design, installation space, and power requirements
- Encapsulated hardware with IP54 for harsh environments
- Suitable for dynamic loads and high starting power
- Supports software updates, configuration, and data logging
Application Areas
- Battery-powered devices
- Mobile work equipment
- Hydraulic pump control
- Power tools
- Forestry and agricultural technology
- Rescue equipment
- Applications with BLDC, PMSM, IPM, or stepper motors
Key Technical Data
- Product type: motor controller
- System name: VIPER
- Output power: up to 1 kW, scalable
- Supply voltage: 8 to 80 V
- Typical voltage range: 12 to 48 V
- Phase current: -68 A to 68 A
- Efficiency: up to 98% at 800 W
- Protection rating: IP54, encapsulated hardware
- Motor types: BLDC, PMSM, IPM, stepper motors
- Control: 3-phase sensorless sine-wave control with FOC
