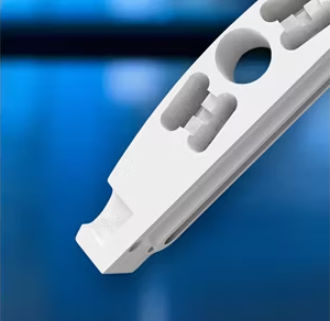

Thermal insulating material BN6000

electricboron nitridefor insulating systems

Overview
BN6000 is a hot-pressed hexagonal boron nitride (hBN) material developed for demanding industrial and aerospace environments. It offers high purity and improved mechanical performance compared with standard pure BN grades, while retaining stable behavior in plasma, vacuum and high-temperature inert atmospheres.

Technical characteristics

• Composition: hexagonal boron nitride (hBN)
• Maximum service temperature: 850°C in air; up to 2000°C in inert atmospheres
• Density: 2.0 g/cm3
• Flexural strength (RT): 52 MPa (parallel) / 60 MPa (perpendicular)
• Compressive strength: 40 MPa (parallel) / 60 MPa (perpendicular)
• Coefficient of thermal expansion (20°C–1000°C): 1.1 ×10^-6 (parallel) / 0.5 ×10^-6 (perpendicular)
• Thermal conductivity: ~21 W/m·K (anisotropic: ~21 parallel / ~21 perpendicular)
• Dielectric strength: >70 kV/mm
• Volume resistivity: ~1e14 ohm·cm

Product features

• Pure boron nitride grade (hBN), hot-pressed
• Service up to 2000°C in inert atmospheres
• High dielectric strength suitable for electrical insulation in vacuum and plasma equipment
• Typical available sizes: up to Ø300 mm × 400 mm length

Advantages

• Very high purity compared with many BN products
• Superior mechanical properties among pure BN grades
• Can replace pure BN or BN with binders in many high-temperature and vacuum applications
• Suitable for PVD systems, vacuum furnaces, crystal growth furnaces and Hall Effect Thruster discharge channels

Applications

• PVD (physical vapor deposition) equipment components
• Insulators and support plates in vacuum furnaces
• Semiconductor processing components exposed to high temperature or plasma
• Aerospace and space hardware requiring high-temperature dielectric materials

Specifications

• Model: BN6000
• Composition: hexagonal boron nitride (hBN)
• Max service temperature: 850°C (air) / up to 2000°C (inert)
• Density: 2.0 g/cm3
• Flexural strength (RT): 52 / 60 MPa (parallel / perpendicular)
• Compressive strength: 40 / 60 MPa (parallel / perpendicular)
• CTE (20°C–1000°C): 1.1 / 0.5 ×10^-6 (parallel / perpendicular)
• Thermal conductivity: ~21 W/m·K
• Dielectric strength: >70 kV/mm
• Volume resistivity: ~1e14 ohm·cm
• Typical sizes: up to Ø300 mm × 400 mm length
