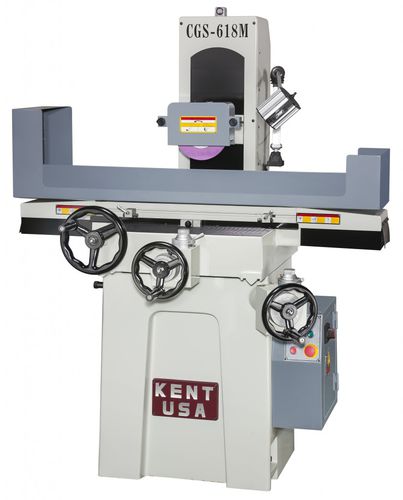

Surface grinding machine CGS-618M conventionalprecision
Add to favorites
Compare this product
Characteristics
- Type
- surface
- Control type
- conventional
- Other characteristics
- precision
- Spindle speed
3,450 rpm
(21,677 rad.min-1)- Power
3 ch
(3 hp)- X travel
6 in
- Y travel
18 in
Description
Roller ball on linear table ways for easy and smooth longitudinal movements
Hardened and ground Z axis column ways with 18” spindle center to table
Cartridge type spindle design for easy serviceability
Large hand wheels on all axis for easy operation
Over 1600 lbs net weight
Centralized auto lubrication system provides lubrication to all points
Precision matched leadscrew and nut sets
Micro feed for Z (0.00005”) axis
Accessories
Standard Accessories
Grinding wheel
Wheel Flange
Wheel balancing base
Wheel balancing arbor
Diamond table dresser base & tip
Leveling bolts & pads
Halogen Work light
Toolbox with tools
Optional Accessories
Fine pole electric chuck & control
Permanent magnetic chuck
Dust-suction coolant system
Flood coolant system
Overhead parallel dresser
Extra wheel flange
Digital Readout System (View Brochure)
Rotary magnetic chuck-ψ150mm
