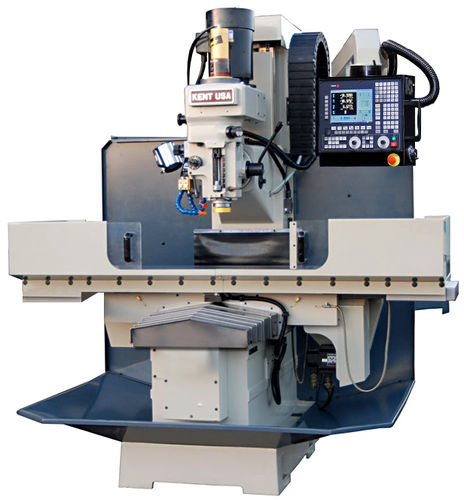

3-axis CNC milling machine TW-40Qi/MCO verticalfixed-bed
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- fixed-bed
- X travel
40 in
- Y travel
21 in
- Z travel
22 in
- Rotational speed
Max.: 6,000 rpm
(37,699 rad.min-1)Min.: 60 rpm
(377 rad.min-1)
Description
Meehanite GB300 casting for superior rigidity
Hardened and Ground Square Y and Z-axis ways
Hardened and Ground table top and dovetail ways
Precision Ground ballscrews on X, Y and Z-axis
Ultra precision ground spindle, ABEC-7 bearings
Hardened and Ground spindle spline and taper
Large Cabinet with shelves for Tools storage
Auto Lube system with metered Check valves
Metal telescoping way cover on Y-axis
Built in Coolant system and Chip pan
Halogen work light
Handwheels on x & Y axis for manual operation
Accessories
Standard Accessories
Acu-Rite 3500i CNC (3-axis, LCD Display)
Optional Accessories
MPG hand wheel jog box (3500i)
Off-line software (3500i)
Fagor 8055i CNC Control
Air Powered Drawbar
Clamping Kit
NMTB-40 End Mill Adapters
Angle-Lock Vise
Rotary Table
