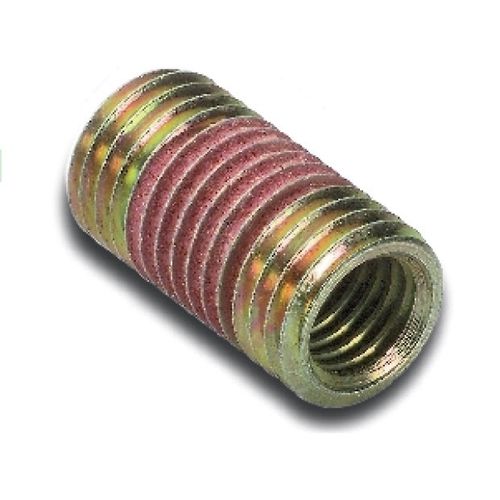

Threaded insert Mubux® - M series

metalflatfor metal

The Threaded Inserts are specifically designed to provide a good quality and excellent performance. They are capable of meeting the standards of several users in need of a device which may be used for metals. It is a drilled and thread tapped thread coated with a precote 80 which acts as an anti-twist safeguard and seal. ApplicationFor the creation of wear-resistantscrew joints with good load capa-bility in formend components madeof light alloy, cast iron and steel.Suitable for through holes andblind holes.Example for findingThreaded insert Mubux®-MO with internal thread A = M6, length B = 12 mm made of zinc plated and blue passivatedthe article numbersteel and coated with microcapsule-based adhesive precote 80: Mubux®-MO 973 000 060.101, without coating:Mubux®-M 973 000 060.110MaterialsZinc plated, blue passivated steel; coated with precote 80 Article no. (fourthgroup of digits) ... ... ... 101Zinc plated, blue passivated steel; without coating Article no. (fourthgroup of digits) ... ... ... 110Other materials, designs (e. g. fine thread) and finishes on request.ThreadInternal thread A: as per ISO 6H •External thread E: screwable in standard threadCoatingMicrocapsule pre-coating on an acrylic basis precote 80,maximum storage capability 4 years at room temperature
