12-key keypad K-TEK-A88KP-AC-BL-DWP
panel-mountstainless steelvandal-proof

12-key keypad
12-key keypad
12-key keypad
12-key keypad
Add to favorites
Compare this product


Number of keys
stainless steel
Other characteristics
vandal-proof, waterproof, weatherproof, IP65, compact, rugged, backlit, custom, rugged, explosion-proof, for access control, control, outdoor

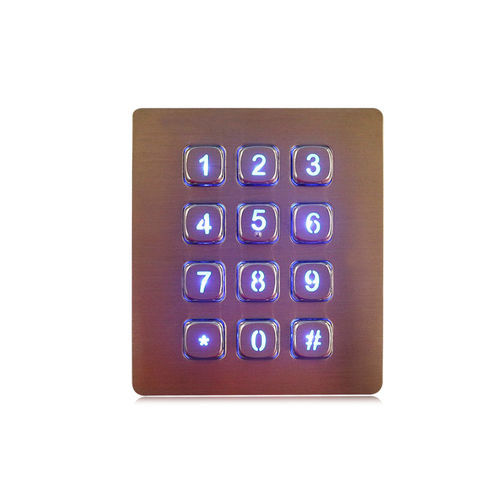

12 keys compact format IP65 dynamic water proof and vandal proof stainless steel industrial dot matrix keypad with fully sealed industrial PCB with socket on the back panel for connecting electronics controller, carbon-on-gold key switch technology with stroke (1.5mm) with extremely good tactile feeling for fast and accurate data input without any noise, top panel mounting with threaded bolts and water-tight gasket for easy mounting and tightening to enclosure or panel. Industrial Backlight included (red/blue/white/green optional). Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion. Parameters:  a. Keys: 16 keys b. Protection Level: IP65 dynamic (front panel) c. Mounting Type: Top panel mount solution d. Material: Stainless steel keypad e. Interface: Dot matrix f. Warranty: 1 year g. Key Switch: Carbon-on-Gold key switch technology PCB h. Dimension: 88.0mm x 102.0mm (top panel) i. Working Temperature: -20℃ to +65℃ J. Backlight: Red/blue/white/green optional Lead-time: ASAP 2-3 weeks Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.


Meet this supplier at the following exhibition(s):

Electronica 2024

12-15 Nov 2024 Munich (Germany)

  • More information

    Other Key Technology (China) Limited products

    IP65 Waterproof Metal Keypad

    *Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
