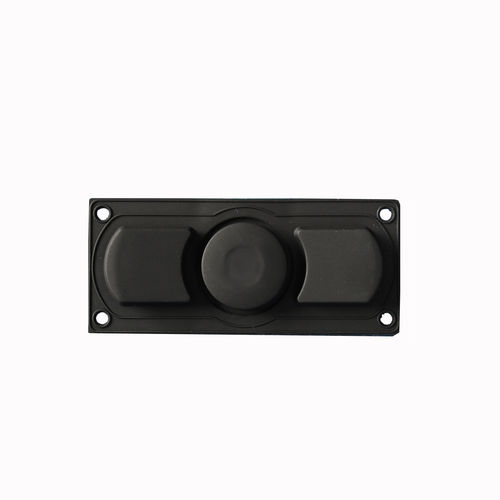

Force-sensing resistor pointing device K-TEK-M76HP-2
panel-mountindustrialUSB

Force-sensing resistor pointing device - K-TEK-M76HP-2 - Key Technology China Limited - panel-mount / industrial / USB
Force-sensing resistor pointing device - K-TEK-M76HP-2 - Key Technology China Limited - panel-mount / industrial / USB
Force-sensing resistor pointing device - K-TEK-M76HP-2 - Key Technology China Limited - panel-mount / industrial / USB - image - 2
Add to favorites
Compare this product

Characteristics

Type
force-sensing resistor
Mounting
panel-mount
Domain
industrial
Connection type
PS2, USB
Specifications
2-button
Protection level
NEMA 4, corrosion-resistant, waterproof, IP65

Description

IP65 dynamic rated waterproof & rugged Force Sensing Resistor pointing device integrated in one-piece compact seamless silicone cover for fast and accurate cursor position, with 2 mouse buttons for left and right clicking, and with mounting holes along for easy mounting & sealing, which is good for much oil, water, sand etc application or gloves are needed when operation. USB interface/PS2 interface optional. Military level optional. Parameters:  a. Protection Level: IP65 b. Mounting Type: Panel mount solution c. Material: silicone d. Interface: USB/PS2 e. Warranty: 1 year f. Dimension: 76.0mm x 32.6mm x 8.6mm (L x W x H) g. Working Temperature: -20℃ to +65℃ h. Switch Contact Material:Carbon-on-Gold key switch technology PCB Lead-time: ASAP 2-3 weeks Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
