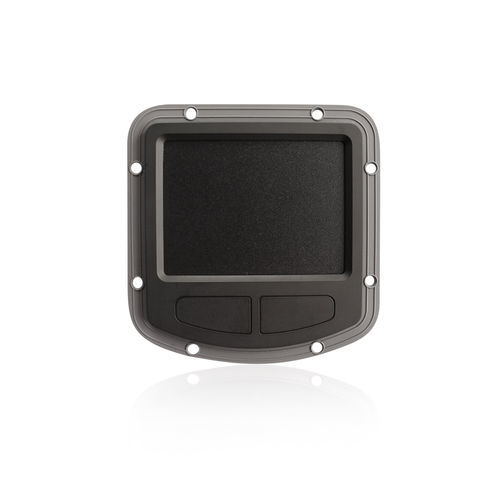

Touchpad for the aerospace industry K-TEK-M73TP-ML

for automotive applicationsindustrialfor marine applications

Description: IP65 static sealed Touchpad with 2 mouse buttons under touchpad for left and right clicking with micro key switch technology with short stroke of 0.30±0.10mm, the electronics controller module shielded and protected with one ultra thin aluminum backplate, with mounting holes along with the rear ABS plastic plate for rear panel mounting. Military level with wide temperature of -40℃ to +65℃, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (high and low wide temperature, shock, salt mist, vibration, temperature shock, drop, dust, fungus, humidity, solar radiation etc.) optional.
Dimension: 73.0 x 73.0 mm (front panel)

MECHANICAL DATA
Keys 2 keys
Key Technology Micro key switch technology
Mutual capacitance sensing
X/Y axis location detection resolution 40 Counts /mm
X/Y position report relative
Tracking speed Maximum 1,016 m/sec
Working current 17 mA
G.W. 0.20KGs
ELECTRICAL DATA
Supply Voltage DC +5V±5%
Lifespan > 5 years
Interface USB
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -40ºC~+ 75º C
Storage temperature -45ºC~+ 85ºC
Operating RH 3%~95%
Atmospheric pressure 60-106Kpa
Saline mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
RELIABILITY
RoHS compliant, CE and FCC certified
Protection Level IP65 (front panel)
MTBF >20000H
MTTR APPLICATIONS Vehicle, aerospace, naval, maritime, Radar, console, portable rugged laptop, notebook, UAV ground station etc.
