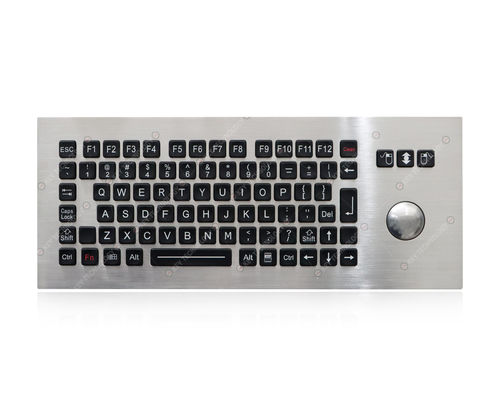

Panel-mount keyboard K-TEK-M361-OTB-FN-DWP
with mechanical keyswith 3 mouse keyswith Fn key

Panel-mount keyboard - K-TEK-M361-OTB-FN-DWP - Key Technology China Limited - with mechanical keys / with 3 mouse keys / with Fn key
Panel-mount keyboard - K-TEK-M361-OTB-FN-DWP - Key Technology China Limited - with mechanical keys / with 3 mouse keys / with Fn key
Panel-mount keyboard - K-TEK-M361-OTB-FN-DWP - Key Technology China Limited - with mechanical keys / with 3 mouse keys / with Fn key - image - 2
Add to favorites
Compare this product

Characteristics

Mounting
panel-mount
Key type
with mechanical keys
Number of keys
with Fn key, with 3 mouse keys, 85-key
Pointing device
with trackball
Domain
industrial, outdoor, for public access kiosks and internet terminals, for mining applications, health and environmental safety, maritime industry, for the aerospace industry, for the transportation industry, for aeronautical applications, petrochemical
Connection type
USB
Structure
QWERTY, silicone-key, AZERTY, ultra-slim
Material
silicone, silicone rubber
Protection level
waterproof, rugged, vandal-proof, scratch-proof, rugged, weatherproof, IP65, MIL-STD 810F
Other characteristics
compact, custom, long-travel, embedded

Description

85 keys(Including 3 mouse buttons) compact format IP65 dynamic water proof vandal proof stainless steel industrial keyboard with durable polymer keys and IP68 dynamic washable 38.0mm stainless steel optical trackball module(Silver harden resin trackball module is optional) with 800DPI resolutions for fast and accurate cursor position, with fully sealed and ruggedized industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, functional keys F1, F2, F3...F10, F11, F12 are on the top line for easy operation. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, strong durable polymer keys caps with laser technology, stainless steel top plate with sealing gasket and threaded bolts for top panel mounting solution. FN + Clean combination keys lock/disable the keyboard for easy cleaning without taking away the keyboard from PC, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc,no rust risk and anti-salt spray corrosion. Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.) as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity. DIMENSIONS: 361.0mm x 145.0mm (front panel)
