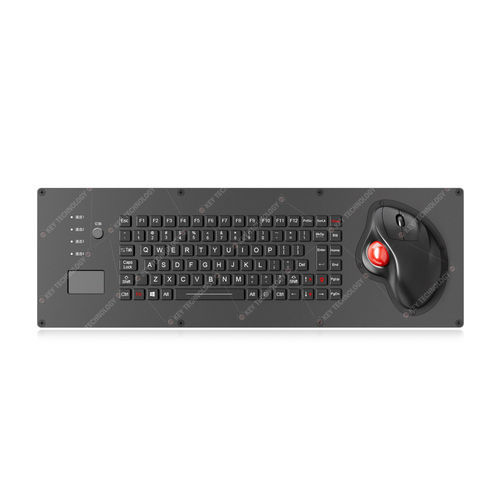

Panel-mount keyboard K-TEK-M525TP-OTB-RS-FN-BL-151B-DWP+KVM

carbon contactwith 2 mouse keys89-key

Description
The K-TEK-M525TP-OTB-RS-FN-BL-151B-DWP+KVM is an industrial-grade 89-key IP65 dynamic waterproof keyboard designed for harsh environments and multi-device control. It integrates an IPX6 ergonomic 34mm optical trackball (500 CPI) and a 400 DPI capacitive touchpad for precise cursor control without mechanical noise. The unit features 12 function keys on the top row, FN-clean combination keys for in-situ cleaning, selectable white or red adjustable backlight, and USB or aviation plug interfaces. A built-in 4-channel KVM conversion PCB with a front-panel switch allows switching control between four connected devices.

Dimension
525.0mm x 172.0mm (front panel)

MECHANICAL DATA

• Keys: 89 keys + 2 mouse keys + switch button
• Key travel: 1.20mm ±0.10mm
• Actuation force: 1.0N ±0.2N (pressure point)
• Trackball: IPX6 rated ergonomic thumb ball, 34.0mm diameter (500 CPI)
• Touchpad: 400 DPI capacitive touchpad
• Key lifespan: >5 million actuations
• Interface: Aviation plug or USB
• Construction: CNC aluminum alloy front plate, PC keycaps, carbon contact switches, military-grade PCB
• G.W.: ~3.0 KG

ELECTRICAL DATA

• Supply voltage: DC +5V ±5%
• Current rating: 50mA (backlight off), 300mA (backlight on)
• EMC/EMI: Meets MIL-STD-461G (CE101, CE102, CS101, CS106, CS112, CS114, CS115, CS116, RE101, RE102, RS101, RS103)

ENVIRONMENTAL ADAPTABILITY

• Operating temperature: -40℃ to +65℃
• Storage temperature: -45℃ to +75℃
• Saline mist: 96h (IEC60512-6)
• Damp heat: +40℃, 21 days (IEC60512-6)
• Dry heat: +85℃, 10 days (IEC60512-6)
• Humidity: 100%
• Atmospheric pressure: 60–106 KPa

RELIABILITY & CERTIFICATIONS

• Compliance: IEC60945-2002, MIL-STD-461G, MIL-STD-810H, RoHS, CE, FCC
• Protection level: IP65 (dynamic)
• Vandal resistance: IK09
• MTBF: >20,000 hours; MTTR: <30 minutes; Lifespan: >5 years
• OS compatibility: Windows, Linux, Unix, Mac OS X, VxWorks, Android (U-COS to be confirmed)
• Typical applications: vehicle, aerospace, naval/maritime systems, radar consoles, rugged laptops, UAV ground stations

Technical specifications

• Model: K-TEK-M525TP-OTB-RS-FN-BL-151B-DWP+KVM
• Category: KVM Keyboard
• Key switch: Carbon-on-gold (carbon contact)
• Backlight: Adjustable (White or Red)
• Built-in: 4-channel KVM conversion PCB with front switch
• Pointing devices: 34mm optical trackball (500 CPI) + 400 DPI capacitive touchpad
• Protection/Durability: IP65 dynamic, IK09 vandal resistant
• Operating/Storage temp: -40℃ to +65℃ / -45℃ to +75℃
• Supply voltage/current: DC +5V ±5% / 50mA (off) / 300mA (on)
• Weight (G.W.): ~3.0 KG
• Key lifespan & MTBF: >5 million actuations; >20,000H
