Windows 7 tablet RGD-TPC-1357Linux10.1"Intel® Core i3
Add to favorites
Compare this product
Characteristics
- Type
- Windows 7, Linux
- Display size
- 10.1"
- Processor
- Intel® Core i5, Intel® Core i7, Intel® Core i3
- Memory
- 4 GB, 8 GB, 16 GB
- Protection level
- rugged, waterproof, shock resistant, vibration-resistant, for harsh environments, IP65
- Connectivity
- USB, WiFi, 4G, LAN
- Screen type
- capacitive touch screen, multitouch screen
- Integrated peripheral
- webcam
- Applications
- industrial, for outdoor use
- Data storage
- SSD 128GB, SSD 256GB, SSD 512GB
- Other characteristics
- RJ45
Description
Overview:
Main features:
Hardware & configuration:
Connectivity & expansion:
Environment & protection:
Design & application:

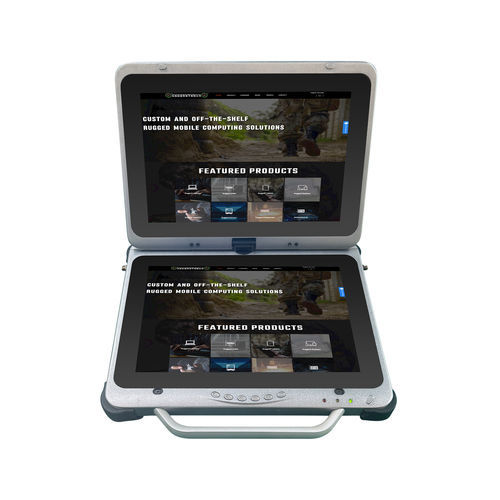

- Rugged dual-screen handheld tablet RGD-TPC-1357 designed for industrial mobile use and field data collection.
Main features:
- Two 10.1-inch capacitive multi-touch displays (1280×800)
- Processor options: Intel i3 / i5 / i7
- IP65 protection and -20℃ to +60℃ operating range
- Magnesium-aluminium alloy housing
Hardware & configuration:
- CPU: Intel Core i7-4510U (other CPU options available)
- Memory: 4GB / 8GB / 16GB (configurable)
- Storage: SSD 128GB / 256GB / 512GB (configurable)
- Battery: 4500mAh; built-in speaker; 6 programmable buttons
Connectivity & expansion:
- 2× RJ45 Gigabit Ethernet; 1× USB 3.0; 1× USB 2.0; 1× HDMI
- Audio: 3.5mm headphone jack and 3.5mm microphone
- Optional modules: WiFi, 4G, camera
Environment & protection:
- Operating temperature: -20℃ to +60℃; Storage temperature: -40℃ to +70℃
- Protection level: IP65; Humidity: up to 95% non-condensing
Design & application:
- Material: Magnesium-aluminium alloy; Dimensions: 270mm × 180mm × 23mm; Weight: 2.5 kg; Colour: Silver (other colours available)
- Typical applications: industrial information processing, mobile data collection, mobile command and control
