Rack drawer KVM switch RGD-KVM-1701HD-450
1Uwith keyboardrack-mount

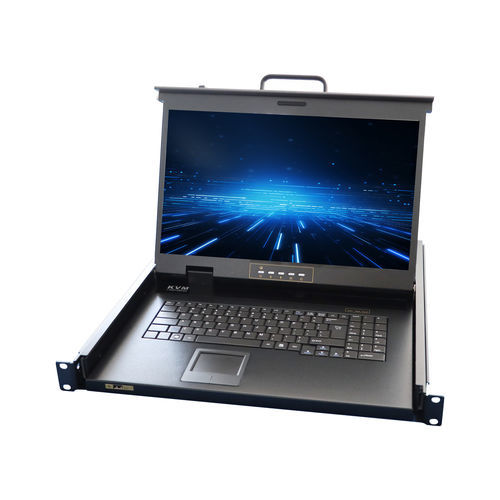

Rack drawer KVM switch - RGD-KVM-1701HD-450 - Key Technology Rugged System Limited - 1U / with keyboard / rack-mount
Rack drawer KVM switch - RGD-KVM-1701HD-450 - Key Technology Rugged System Limited - 1U / with keyboard / rack-mount
Rack drawer KVM switch - RGD-KVM-1701HD-450 - Key Technology Rugged System Limited - 1U / with keyboard / rack-mount - image - 2
Rack drawer KVM switch - RGD-KVM-1701HD-450 - Key Technology Rugged System Limited - 1U / with keyboard / rack-mount - image - 3
Rack drawer KVM switch - RGD-KVM-1701HD-450 - Key Technology Rugged System Limited - 1U / with keyboard / rack-mount - image - 4
Add to favorites
Compare this product
Go to the Key Technology Rugged System Limited website for more information

Characteristics

Options and accessories
rack drawer, 1U, with keyboard, rack-mount, with LCD screen

Description

Overview
  • Rack-mounted 17.3" LED KVM console integrating display, 104-key keyboard with touchpad and KVM switch for controlling one server.
  • Slide-out design with adjustable rail and self-locking device; withdraw distance 45 mm and opening height 325 mm for compact 19" rack installation with 450 mm depth.


Key features
  • 17.3" TFT LED display, 1920 x 1080 @60Hz, 16.7M colors, 300 nits, 700:1 contrast
  • Multiple interfaces: VGA, DVI, HDMI and USB for video and control
  • Hotkeys and OSD control: Scroll-Lock, Caps-Lock, Num-Lock, KVM OSD for quick switching
  • Integrated 104-key keyboard with touchpad for efficient rack access
  • Dual power support: built-in AC 100-240V~50/60Hz or external 12V 3.33A adapter
  • Compatible with major industrial/server brands: IBM, DELL, HP, SUN, Lenovo, Advantech, EVOC, etc.


Technical specifications
  • Computer connect: 1 computer
  • Port connectors: USB, VGA, DVI, HDMI
  • LCD: 17.3" TFT LED; Resolution: 1920 x 1080 @60Hz; Max colors: 16.7M; Brightness: 300 nits; Contrast ratio: 700:1; Pixel pitch: 0.297 x 0.297 mm
  • Keyboard/Mouse: 104-key keyboard with touchpad
  • Power input: AC 100-240V~50/60Hz built-in or 12V 3.33A adapter; default shipped with AC built-in power supply
  • OS: Microsoft Windows Server (latest), Linux, Unix
  • Material: ROHS compliant; Cabinet color: high-temperature spray black
  • Dimensions (L x W x H): 450.0 mm x 465.0 mm x 44.0 mm
  • Withdraw distance: 45 mm; Opening height: 325 mm
  • Weight: Gross weight 13.75 kg
  • Operating temperature: 0℃ to +60℃; Storage temperature: -20℃ to +70℃; Humidity: 5%–95% non-condensing
