Ultrasonic flow sensor FD-Q series

volumefor waterfor oil

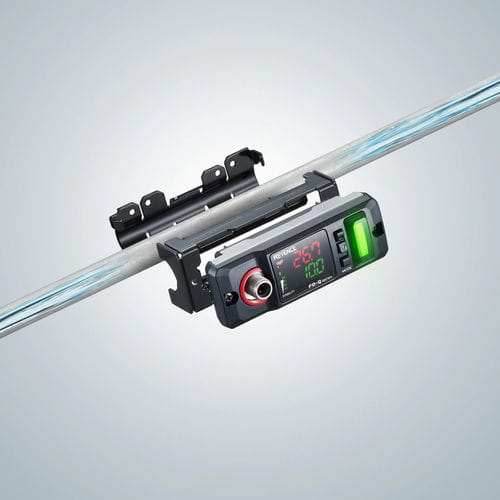

Monitor Liquid Flow Without Modifying a Pipe • Easy to install for any user • Compatible with countless flow setups • Innovative clamp-on design prevents these common issues Compatible with a variety of pipe materials and liquids, the FD-Q Series Clamp-on Flow Sensor can detect the flow rate of a liquid without the need for any pipe modification. This device enables the detection of a wide variety of liquids, including water (and pure water), oil, and chemicals. Detection is possible on both metal and resin pipes up to 2" in diameter. Unlike conventional sensors, installation and operation are also easy on high-pressure pipes. Costs are significantly reduced with the minimal installation required and the completely non-wetted design eliminates the risk of pressure loss or increased maintenance. Additionally, the large indicator provides real-time status information. Easy to Install for Any User FD-Q can be mounted quickly and easily with only a screw driver, no pipe modifications necessary. • Mount in 60 seconds without any pipe modification • Clamps on to the outside of a pipe with 6 standard screws • Install flow sensor without shutting the machine down
