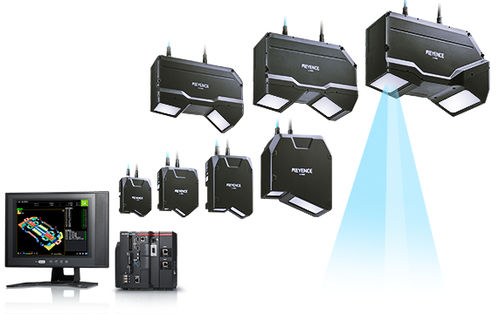

Detection vision system LJ-S8000

monitoringinspectionquality control

Inline 3D Inspection with Hassle-Free Integration Appearance inspection, dimensioning, and detection all in one device Extensive range of sensor heads to cover applications with a field of view of up to 640 mm Fast imaging in as little as 0.2 seconds The LJ-S8000 Series 3D Laser Snapshot Sensor is the first in the world to adopt a motor-driven scanning detection method. The built-in laser light source and scanning mechanism eliminate the need for external lighting, lensing, a moving stage or an encoder. This makes it possible to perform not only inspection (dimensioning, appearance, shape, etc.) but also differentiation just by installing the sensor. Ultra-high-speed, ultra-high-accuracy inline 100% inspections are now possible for a wide variety of targets made from a wide variety of materials with imaging speeds of as little as 0.2 seconds and repeatability of 0.3 µm. Meanwhile, KEYENCE’s Imaging Navigation function makes adjustment as easy as selecting the image with the best quality, eliminating the need for specialised skills and significantly reducing the time and effort needed at startup or when reconfiguring settings. The LJ-S Series utilises a one-of-a-kind design that allows for scanning of parts by moving the components internally and eliminating the need to move the part of sensor head. This not only makes installation a breeze, but also creates a large depth of field. High-intensity blue laser The high light concentration density and sharp image-forming beam enable high inspection accuracy. High-resolution CMOS Brushless direct-drive motor The unique brushless design ensures ultra-high durability of the direct-drive motor.
