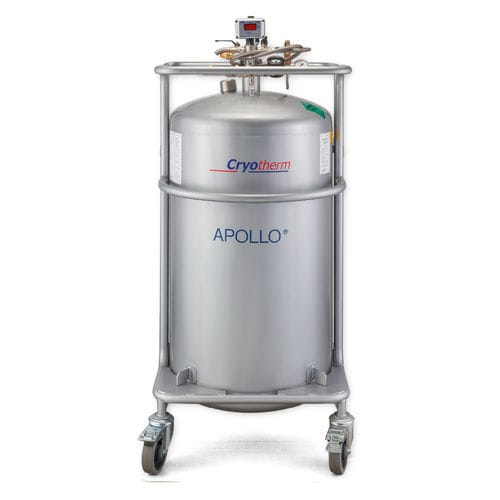

Stainless steel vessel APOLLO Series
cryogenicliquid nitrogen storagevacuum

Stainless steel vessel - APOLLO Series - KGW-ISOTHERM Karlsruher Glastechn. Werk Schieder GmbH - cryogenic / liquid nitrogen storage / vacuum

Stainless steel vessel - APOLLO Series - KGW-ISOTHERM Karlsruher Glastechn. Werk Schieder GmbH - cryogenic / liquid nitrogen storage / vacuum - image - 2

Stainless steel vessel - APOLLO Series - KGW-ISOTHERM Karlsruher Glastechn. Werk Schieder GmbH - cryogenic / liquid nitrogen storage / vacuum - image - 3

Stainless steel vessel - APOLLO Series - KGW-ISOTHERM Karlsruher Glastechn. Werk Schieder GmbH - cryogenic / liquid nitrogen storage / vacuum - image - 4

Add to favorites

Compare this product

Go to the KGW-ISOTHERM Karlsruher Glastechn. Werk Schieder GmbH website for more information

Characteristics

Material

stainless steel

Type

cryogenic

Function

liquid nitrogen storage

Other characteristics

vacuum

Capacity

348 l
(91.932 gal)

Max.: 350 l
(92.46 gal)

Min.: 50 l
(13.209 gal)

Pressure

1.3 bar, 2 bar
(18.9 psi, 29 psi)

Max.: 2 bar
(29 psi)

Min.: 1.3 bar
(18.9 psi)

Description

Characteristics High mechanical stability, the container is made of stainless steel. Low evaporation rate by multi-layer superinsolation in the vacuum space. Very durable by robust constructive design, production and choice of material. Long holding time by the use of adsorption and getter materials. Standard Equipment Integrated safety devices at the container neck Vacuum lock with safety valve Easy running castors Mini-flange-joint NW 50 KF Transfer siphon with transfer hose covered with metallic tissue Hand and protection ring Contents gauge Pressure attachment by fluid removal without external power supply
