Plastic lens element SILVERvisiblefor LEDs
Add to favorites
Compare this product
Characteristics
- Material
- plastic
- Optical characteristics
- visible
- Applications
- for LEDs
- Diameter
21 mm, 26 mm
(0.83 in, 1.02 in)
Description

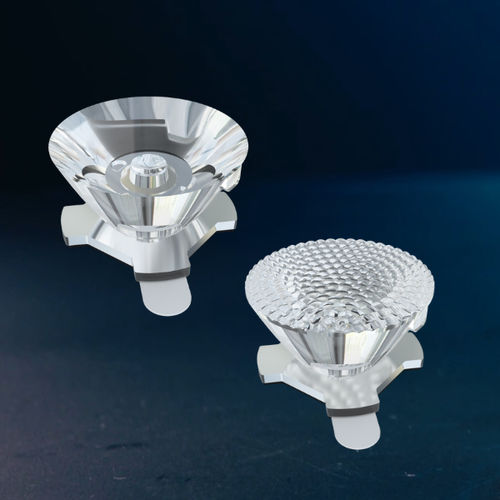

Single Lens with adhesive tape fixing - 26.00mm diameter - 15.00mm height - Ultra Narrow Beam
Material: PMMA
Self adhesive tape is applied on the lens bottom
Full angle at 50% from maximum: ~ 10°
Full angle at 10% from maximum: ~ 19°
The light spots here represented refer to tests carried out with 1 LED 3.5x3.5mm, and ~ 380 Lumen
