Optical for lighting reflector KCLP48CRSM Series

for LEDssquare

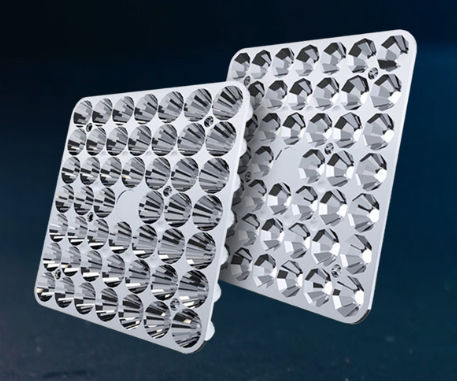

ARENA is the new Khatod’s family of high-tech reflectors meant for wide area applications, especially for lighting applications in any type of sport structures and environments, indoor and outdoor. ARENA reflectors come in many models with square shaped (dimensions: 145mm x 145mm) and consist of an array made of 48 reflectors, with a 2mm pitch between the optical foci. They perform a variety of NEMA Beam Angle Types, from Narrow Beam (NEMA 2) to Ultra-Wide Beam (NEMA 5) and an outstanding Asymmetrical Beam (NEMA 5×6). Made of PC HT Black with aluminium reflective coating, the reflectors work perfectly within –40° to ~ 90°C temperature range. KCLP48xxCRSM Reflectors are optimized for the most famous 3535 package LEDs with dome; perform high lighting efficiency, excellent luminous flux and great glare control. They are also available with a cover made of transparent PC and provided with a silicone gasket ensuring IP and IK protection. They can be used individually or configured in multiple parts so to create the perfect lighting fixture for your application, as linear lighting rows or in configurations of different shape and width. The reflectors are easily assembled by screw fixing.
