Name:GSM GPRS Temperature Logger(Outdoor)
Model:S261

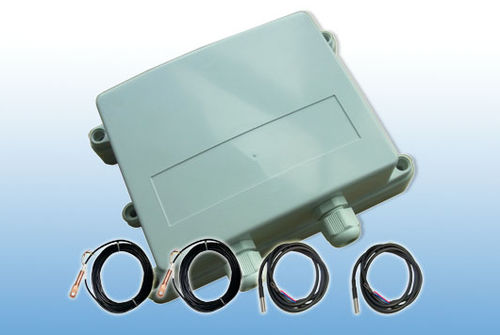

S261 with outdoor weather proof enclosure for outdoor applications.
The King Pigeon S260 S261 Temperature Logger inbuilt industrial Quad-band GPRS Engine,and GPS module optional. 4 Channel temperature inputs support Ultra-Low/Low/High/Ultra-High limit alarm monitoring.
One digital relay output with NC/NO contacts controlled by alarm event, SMS command or Rejected Caller-ID(charge free).
With Internal memory, S260 S261 save historical data half a year for inquiry & download by PC software via USB cable or KingCenter CMS-02 Remote Monitoring System via GPRS TCP/IP, and tracking the real time GPS location with optional GPS module.
Daily report, schedule upload, event upload via GPRS to remote monitoring center (TCP/IP) or by SMS to users mobile phone available.
S260 S261 used for field monitoring in worldwide, we offer GPRS protocol for clients to build their own monitoring software/applications.
Features
Ø GSM Quad-Band,distribute worldwide applications available
Ø –55°C to +125°C (–67°F to +257°F) measurement range
Ø SMS command or PC Software programming
Ø User-programmable alarm thresholds (Ultra-Low/Low/High/Ultra-High)
Ø 6 numbers for receiving temperature alert and relay control
Ø Relay control programmable when alarm thresholds exceed
Ø Relay control by Caller-ID with free of charge, SMS, GPRS (*work with KingCenter CMS-02)
Ø Record temperature data on internal memory :
- Min interval: per 5mins, can save data on unit more than 6 months
- Max interval: per 255mins,can save data on unit more than 10 years
Ø Historical data download to PC ( .csv format) via USB
