Electrical safety testing device KF86

automaticPC-controllableprotection relay

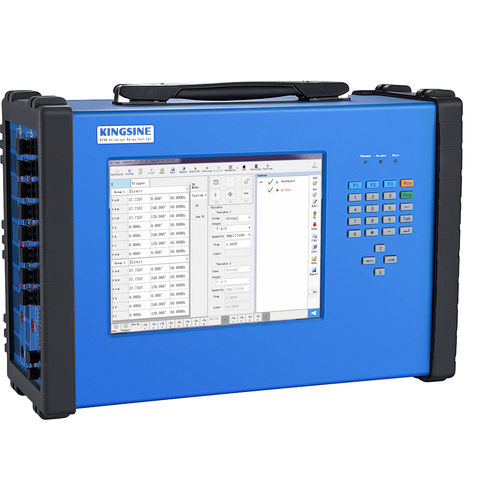

KF86 Intelligent Relay Test Set Item No.: 203009 Light weight: 10kg, easy carry on flight journey. 6x20A, 6x130V analog output channels. Compact 6-phase relay test set with high accuracy & full solution (complying IEC61850 sampled value and GOOSE), fully meet all the requirements for detection and debugging of IEC61850 IEDs, Merge Units, station control systems and traditional protection relays. Features: ● - With analog (6x130V voltage, 6x20A current) and IEC61850 SMV messages simultaneously output; ● - Built-in dual-core CPU industrial computer, built-in large-capacity SSD solid drive; operating system Embedded Windows 7; 9.7-inch true color LCD screen, 1024×768 resolution, touch screen operation. Can work offline or online; ● - Provide 8 pairs of LC optical ports, can transmission and receive 36 channels of IEC61850-9-1, IEC61850-9-2 frame format sample values; with optical power test function; ● - Provide 6 ST output optical ports and 2 ST receive optical ports, which can output 6 sets of sampled value messages conforming to IEC60044-7/8 (FT3) format; can receive 2 sets of FT3 format of IEC60044-7/8 specification Sampled value message; ● - Can subscribe/publish GOOSE information or output, receive switching, and realize closed-loop testing of protection; ● - Simulate 12-channel low level output to test the protection of low level input; ● - Start up to simulate the IED to actively release GOOSE, sampled value signals, to eliminate the reset process of the device under test caused by link interruption after the test is stopped;
