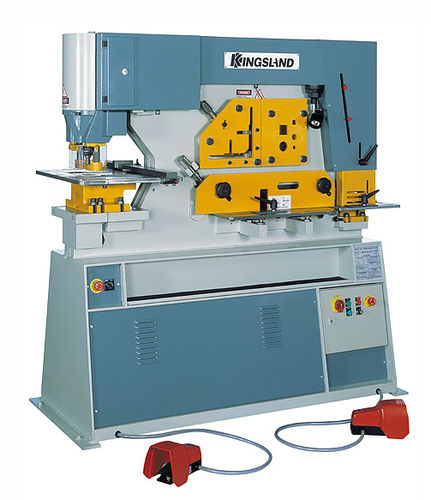

Semi-automatic punching machine Multi series

hydraulicfor metal sheetsshearing

The Multi Range of 60 up to 175 ton machines are in the Kingsland tradition of well engineered, robust steelworkers, built for a long working life. These universal machines are supplied with standard tooling including repetition support tables at punch, shear and notch stations and with easily adjusted holddowns at all five work stations to safely control the operations. Comprehensive safety guards are fitted as standard on all work stations. Free standing on a suitable floor, they just require electrical connection to be ready for work. For two operator utilisation, the hydraulic system is activated by two shielded foot controls,one operating the punch end cylinder, the other operating the shear end cylinder. The shear cylinder provides the power to the three shearing and the notch stations. The system gives accurate power inching at all five work stations and allows the machine to be stopped at any position giving safe and accurate tool setting and work positioning. Limit switches at both ends of the machine control stroke length at all stations. Centralised lubrication is metered by one-shot system, being only one feature of the low maintenance requirement. An optional 'Production Pack' is available to enhance the machine specification. This includes: 1 low volt halogen lamp on a movable magnetic base, 1.0m long touch and cut ruled length stop, fine adjustment facility to the punch stroke and measuring scales in the notch table.
