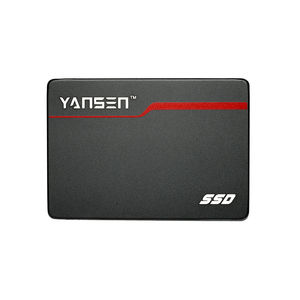

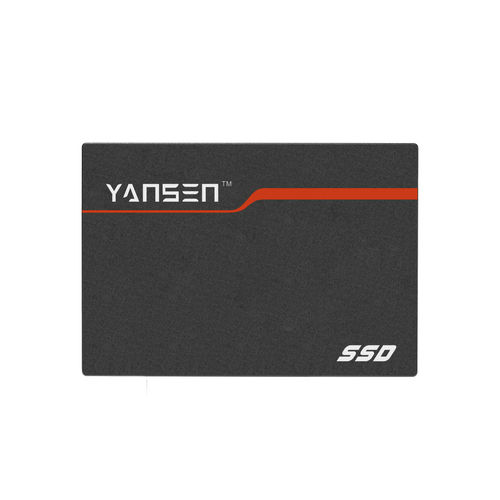

SATA SSD YSS25P2YT series

internal2.5"industrial

YSS25P2 2.5 SATA SSD from Yansen is designed to be a industrial grade SSD. With up to 2TB capacity and efficient 3D TLC NAND, it can store large amounts of critical data while operating with low power. Compliant with SATA 3.2, YSS25P2 maximizes throughput between drives and systems. Our advanced LDPC correction function preserves data integrity even after extensive usage through error detection and repair. Sequential speeds of 560/550 MBps accelerate throughput-sensitive applications. Rigorous testing validates the industrial SATA SSD exceeds reliability needs for embedded uses in harsh conditions. Protection mechanisms like an aluminum casing and conformal coating safeguard components. Features also benefit administrators through AES encryption, secure erase with standards. Specification Dimensions - 2.5 inch L100.4mm * W70.0mm * H7.0mm Error±0.15mm Input voltage - DC 5V±5% Power consumption Idle - 0.18W(2TB) Power consumption Active - 1.15W(2TB) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - LDPC ECC Features - Power management/TRIM/S.M.A.R.T./NCQ/Wear-leveling Operating Temp. - -20℃～75℃，-40℃～85℃ Storage Temp. - -55℃～105℃ Humidity - 5-95%
