Universal data-logger METEONUSBwithout displayfor meteorological sensors

universal data-logger
universal data-logger
universal data-logger
universal data-logger
universal data-logger
universal data-logger
Add to favorites
Compare this product
indicative price

Characteristics

Measured quantity
universal
Connector type
USB
Display
without display
Applications
for meteorological sensors, for solar sensors
Other characteristics
programmable, battery-powered
Memory capacity

3,500 unit

Description

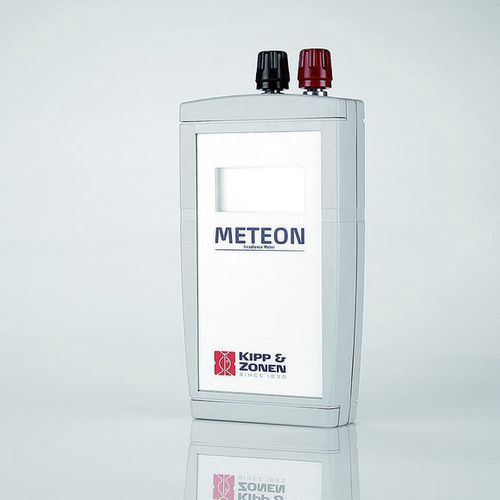

METEON is an accurate hand-held unit to be used in combination with a passive (non-powered) radiometer to display and record measurements of solar irradiance. Its small size, long battery life and accurate single voltage input make it an ideal tool for many test and field applications. METEON can be used with: CMP pyranometers CM4 SP Lite2 NR Lite2 CUV5 PQS1 Configuration with a computer is simple, using the supplied Windows™ software and USB interface cable. Just select the Kipp & Zonen radiometer type from a list, enter its sensitivity, and the correct measuring range is automatically selected. METEON will now display real-time solar irradiance values in W/m2, or Photosynthetically Active Radiation (PAR) in µ-mol/m2.s. The input is bi-polar, so the large 4-digit display can show both positive and negative values and METEON can be configured for other types of sensors with an analogue output up to 200 mV. METEON measure twice per second and the data logging function can be configured to store values at a selectable interval. Each of these samples comprises the minimum, maximum and integral values over the logging interval and up to 3500 samples can be stored. The logger will run for up to 50 days continuously on two AA internal batteries. The memory is non-volatile and data is not lost when the unit is switched off or the batteries are changed. METEON is delivered in a tough carrying case together with: 2 x AA alkaline batteries Software on a CD-ROM USB interface cable
