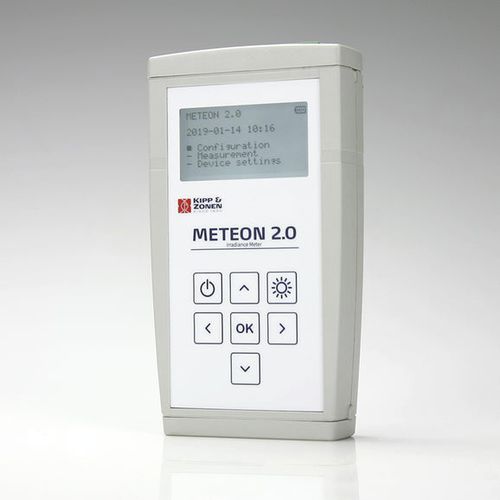

Universal data logger METEON 2.0

temperatureUSBRS-485

Battery operated handheld dat logger for PV related solarradiation measurement, for up to 7 analog and smart sensors, with carrying case The METEON 2.0 is a compact handheld display and data logger optimized for PV related solar radiation measurement. It accepts simultaneously up to 5 Smart and one Analog Kipp & Zonen radiometers plus a Mencke & Tegtmeyer PV panel temperature sensor and also has a S0 input for kWh meter pulses. The large 8 x 22 character display is readable in full sunlight and has a backlight for darker conditions. The keypad with 7 buttons can be used to navigate through the different menus. When using the USB connection the METEON 2.0 can be set in transparent mode to act as a universal RS-485 interface for the connected Modbus® sensors. METEON 2.0 can measure, display and log data from up to 8 devices. Depending on the number of instruments connected and the logging interval selected, it can store weeks of data. Technical Attributes Communication - USB to computer for logger configuration and data download as csv or xlsx files plus Transparent mode Memory - Internal for 380,000 values of average, minimum, maximum for 7 instruments + pulse total Number of analog ports - 1 Power Consumption - sufficient for more than 3 days, 3 sensors logging Input Range - 1 x millivolt level, suitable for all Kipp & Zonen passive radiometers Analogue inputs - 1 x bi-polar 16-bit Battery Type - 2 x AA Input voltage - 5 x AA internal batteries or external supply 10 to 24 V Digital outputs - 1 x kWh energy meter S0 pulse Display - Yes, 6 lines Accuracy - 0.1 % (0.1W) Serial Input - RS-485 port for 5 compatible Modbus® devices from Kipp & Zonen or IMT Digital I/O - 1 x kWh energy meter S0 pulse
