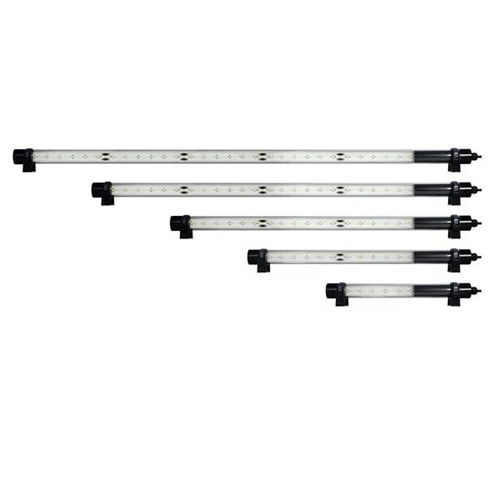

Light fixture KE-LED-EA 40xx-P series

LEDfor machinesindustrial

The machine lights of the KE-LED-EA 40xx-P series are powerful LED tubular lights specially developed for industrial use. Thanks to their modular design, they are available in various lengths up to 1250 mm and can therefore be flexibly adapted to a wide variety of installation situations. Depending on the version, the light is equipped with 6, 12, 18, 24, or 30 POWER LEDs – the top model, the KE-LED-EA 4030, achieves an impressive light output of up to 3000 lumens. This ensures bright, uniform, and highly visible illumination of your work area. Another advantage: The light can be operated directly with 24 V – without the need for an external ballast. This enables easy integration into machines and technical systems. Efficient, robust, and versatile: The KE-LED-EA 40xx-P series is the perfect lighting solution for demanding industrial applications. Illuminant: 6 / 12 / 18 / 24 respectively 30 POWER LED / 5000K Protection tube: polycarbonate, shock-resistant, 40 mm diameter Optional available with diffusor foil (light-distributing foil for homogeneous light) End cap: PA 6.6, black (Polyamid) Fixation: incl. 2 fixing clamps made of plastic Protection category: IP65 Protection class: II Cable: 5 m H05RN-F 2 x 1,0 mm² Voltage: 230V or 110V Special models - longer cable, cable type, plug etc. on request.
