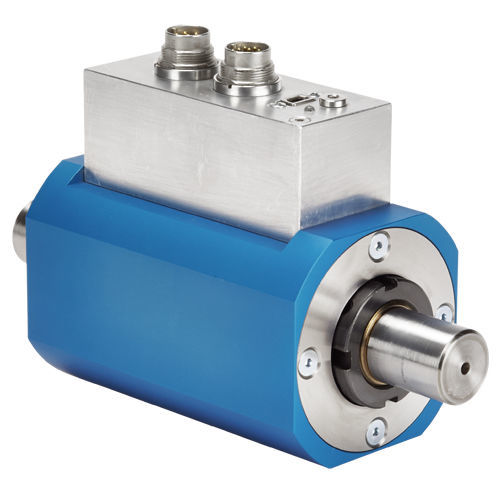

Static torque sensor 4503BQ

dynamicdigitalvoltage output

• Dual range sensor with two freely selectable measuring ranges in 5% steps • Well suited for static and dynamic measurements with a cut-off frequency (–3 dB) 10 kHz • Very high accuracy thanks to linearity error including hysteresis of only 0.05 % Product type Rotating / Non-rotating Rotating Mechanical properties Limiting Torque 150 % Metrological characteristics Linearity including hysteresis 0.05 %FSO Relative standard deviation of repeatability 0.05 %FSO Dual-range Yes Accuracy class strain gauge 0.05 Influence quantities Temperature influence zero point 0.05 %FSO/10K Temperature influence nominal value 0.05 %FSO/10K
