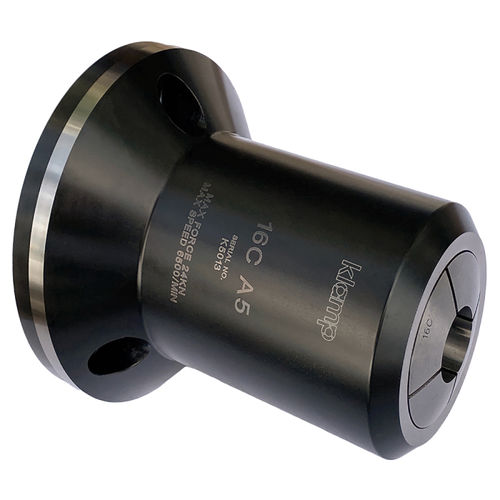

Machining collet chuck DEL16C-A5

for precision engineeringfor turning applicationshigh-speed

Product overview
Pull Back Series power collet chuck DEL16C-A5 with 0.5 - 42 mm gripping range. A5 mounting (A6 option available). Maximum speed 6000 rpm. Net weight approx. 7.5 kg.

Key features

• Capacity: 0.5 - 42 mm
• Pull-back ratio: 1:3
• Maximum drawbar pull: 24 kN
• Maximum speed: 6000 rpm
• Net weight: 7.5 kg
• Mount: A5 (A6 available)
• Collet reference: 16C
• Accessories: collet wrench included

Compatibility and collet information
Designed for 16C collets (Type G119) used with Pull Back chucks. Compatible with common collet types used in pull-back solutions; consult Kitagawa documentation for specific adapter/collet combinations and fitting instructions.

Applications

• Bar feeding and automatic lathe operations
• First- and second-operation machining
• Precision turning, multi-face machining and high-speed applications
• Automotive, aerospace, medical device and general high-precision manufacturing

Technical specifications

• Model: DEL16C-A5
• Grip range: 0.5 - 42 mm
• Mount: A5 (A6 available)
• Pull-back ratio: 1:3
• Max drawbar pull: 24 kN
• Max speed: 6000 rpm
• Net weight: 7.5 kg
• Collet type/reference: 16C (Type G119)
• Included accessories: collet wrench
• SKU: del-16c-a5
