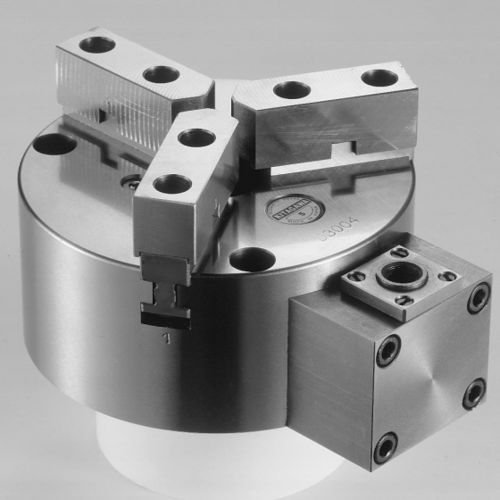

Workpiece clamping chuck for turning applications SC-5S

for internal turningfor external turningmanual

Product overview
Stationary scroll chuck for manual and fixture-mounted workholding on lathes and machining setups.

• Available on multiplate for easy fixture mounting.
• Compact design for space-constrained installations.
• Soft jaws are machinable to adapt to a variety of workpieces.

Key Features

• Max. Gripping Force (kN): 12
• Allowable handle torque (N·m): 39.2
• Weight (kg): 5.3
• External Gripping Range (mm): 3~110
• Internal Gripping Range (mm): 33~100

Product Specifications (excerpt)
Model: SC-4S — SC-5S
Max. Gripping Force (kN): 9.6 — 12
Handle Torque (N·m): 27.5 — 39.2
Gripping Diameter (External, mm): 3～95 — 3～110
Gripping Diameter (Internal, mm): 29～84 — 33～100
Net Weight (kg) (with Soft Top Jaws): 4 — 5.3
Outline Drawing: PDF available for each model
DXF/DWG: DXF and DWG files available for each model

Technical specifications

• Brand: Kitagawa
• Model: SC-5S
• SKU: sc-5s
• Max. Gripping Force: 12 kN (SC-5S)
• Allowable handle torque: 39.2 N·m (SC-5S)
• Net Weight (with Soft Top Jaws): 5.3 kg (SC-5S)
• External Gripping Range (SC-5S): 3–110 mm
• Internal Gripping Range (SC-5S): 33–100 mm
• Available on multiplate for easy fixture mounting
• Soft jaws: machinable to adapt to a variety of workpieces
